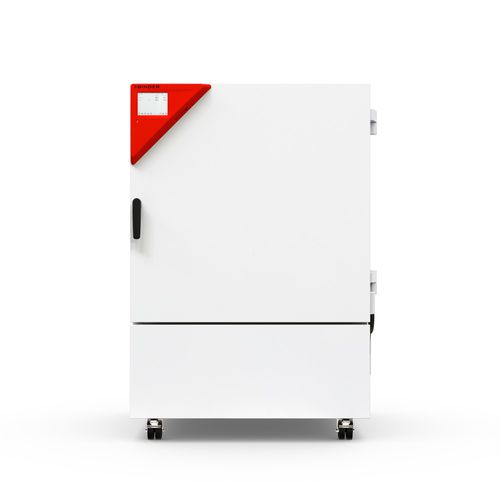

Climate chamber KBF PRO 260

humiditytemperaturelight

Product description
The KBF PRO 260 is a constant climate chamber for material testing and environmental simulations with a temperature range from −20 °C to +100 °C and a humidity range from 10% to 98% RH. It supports flexible water-supply options for different installation sites, uses R‑290 refrigerant and achieves up to 40% lower energy consumption compared with the previous model KMF. Optional light modules are available for ICH photostability testing or plant-growth applications.

Benefits

• Precise temperature control across the full range due to advanced regulation technology
• Durable long-term operation with proven compressor technology and stainless-steel inner chamber
• Operator guidance and status display via signal triangle and touchscreen program controller
• Energy-efficient operation with modern inverter cooling unit and climate-neutral refrigerant R‑290
• Flexible installation thanks to multiple water-supply options and accessible interfaces

Important characteristics

• Temperature range: −20 °C to +100 °C
• Humidity range: 10% to 98% RH
• APT.line™ preheating chamber technology
• Up to 40% lower energy consumption vs. previous model
• Inverter cooling unit for efficient refrigeration
• Cooling with climate-neutral R‑290 refrigerant
• Door heating to prevent condensation
• Adjustable fan speed
• Humidity control with capacitive humidity sensor and fast-acting steam humidification
• HIT sandwich technology in housing construction
• Stainless-steel inner chamber
• Inner doors made of metal-oxide coated safety glass
• Two stainless-steel racks with telescopic rails (std./max. shelves: 2/9)
• 80 mm × 45 mm access port with silicone plug
• Floor-standing units with robust twin casters and front brakes
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger; measured values can be exported in open format via USB
• Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
• Unit self-test for comprehensive status analysis
• Data interfaces: Ethernet, USB
• BINDER Multi Management Software APT-COM™ basic edition
• Optional light modules for ICH photostability tests and optional LED modules for plant growth

Technical specifications

• Article Number: 9020-0440
• Designation: KBFPRO 260-230V
• Option model: Standard
• Temperature range (performance): -20...100 °C
• Temperature range with humidity: 10...90 °C
• Humidity range: 10...98 % RH
• Max. heat compensation at 40 °C: 800 W
• Temperature uniformity at 25 °C and 60% RH: 0.2 ± K
• Temperature uniformity at 40 °C and 75% RH: 0.2 ± K
• Temperature fluctuation at 25 °C and 60% RH: 0.1 ± K
• Temperature fluctuation at 40 °C and 75% RH: 0.1 ± K
• Humidity fluctuation at 25 °C and 60% RH: 1 ± % RH
• Humidity fluctuation at 40 °C and 75% RH: 1 ± % RH
• Recovery time after door opened 30 s at 25 °C / 60% RH: 2 min
• Recovery time after door opened 30 s at 40 °C / 75% RH: 3 min
• Rated Voltage: 208...240 V
• Power frequency: 50/60 Hz
• Nominal power: 1.6 kW
• Unit fuse: 16.0 A
• Phase (Nominal voltage): 1~
• Interior volume: 262 L
• Net weight of the unit (empty): 197 kg
• Load per rack: 40 kg
• Permitted load: 200 kg
• Wall clearance back: 100 mm
• Wall clearance sidewise: 180 mm
• Width net: 930 mm
• Height net: 1,396 mm
• Depth net: 900 mm
• Interior width: 656 mm
• Interior height: 695 mm
• Interior depth: 575 mm
• Inner doors: 1
• Unit doors: 1
• Number of shelves (std./max.): 2/9
• Sound-pressure level at 25 °C and 60% RH: 48 dB(A)
• Energy consumption at 25 °C and 60% RH: 235 Wh/h
• Energy consumption at 40 °C and 75% RH: 260 Wh/h
• Energy consumption at 85 °C and 85% RH: 375 Wh/h
