Climate chamber KBF PRO 130

humiditytemperaturefor environmental simulation

Product description

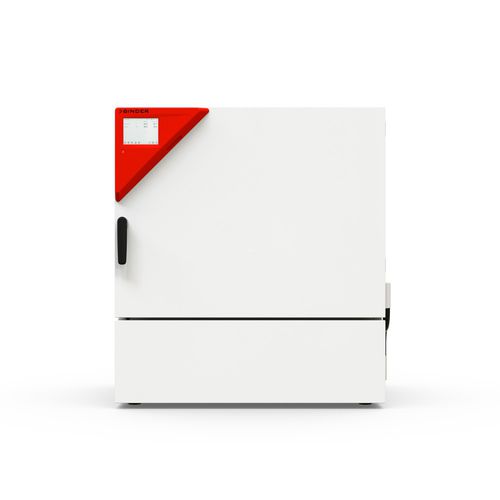

The KBF PRO 130 is a constant climate chamber designed for material tests and environmental simulations with a wide temperature and humidity range. It supports tests from -20 °C up to +100 °C and humidification modes up to 98 % RH, offers flexible water supply options and reduces energy consumption by up to 40 % compared with the previous KMF model.

Benefits

• Precise temperature control using advanced regulation technology
• Long-term reliable operation with proven compressor technology and stainless-steel inner chamber
• User-focused operation: illuminated status indicator, ergonomic touchscreen program controller, telescopic rack rails
• Energy efficiency through modern inverter cooling and climate-neutral R-290 refrigerant

Important characteristics

• Temperature range: -20 °C to +100 °C (performance)
• Humidity range: 10 % to 98 % RH (with humidification)
• APT.line™ preheating chamber technology
• Door heating to prevent condensation
• Adjustable fan speed
• Humidity control with capacitive sensor and steam humidification
• Stainless-steel inner chamber and inner door of metal oxide-coated safety glass
• Ø 30 mm access port with silicone plug
• Stackable design, telescopic rails for racks
• Internal data logger with USB export in open format; Ethernet and USB interfaces
• BINDER APT-COM™ Multi Management Software (basic edition)
• Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms

Technical specifications

• Article Number: 9020-0439
• Designation: KBFPRO130-230V
• Model option: Standard
• Temperature range (performance): -20...100 °C
• Temperature range with humidity: 10...90 °C
• Humidity range: 10...98 % RH
• Max. heat compensation at 40 °C: 450 W
• Temperature uniformity at 25 °C / 60 % RH: 0.2 ± K
• Temperature uniformity at 40 °C / 75 % RH: 0.2 ± K
• Temperature fluctuation at 25 °C / 60 % RH: 0.1 ± K
• Temperature fluctuation at 40 °C / 75 % RH: 0.1 ± K
• Humidity fluctuation at 25 °C / 60 % RH: 1 ± % RH
• Humidity fluctuation at 40 °C / 75 % RH: 1 ± % RH
• Recovery time after door opened 30 s at 25 °C / 60 % RH: 2 min
• Recovery time after door opened 30 s at 40 °C / 75 % RH: 3 min
• Interior volume: 127 L
• Net weight (empty): 142 kg
• Load per rack: 30 kg
• Permitted total load: 150 kg
• Wall clearance (back/side): 100 mm / 100 mm
• Rated voltage: 208...240 V, 50/60 Hz, 1~
• Nominal power: 1.9 kW · Unit fuse: 16.0 A
• Housing dimensions (W × H × D): 900 × 1,005 × 710 mm
• Internal dimensions (W × H × D): 656 × 500 × 386 mm
• Inner doors: 1 · Unit doors: 1
• Sound-pressure level at 25 °C / 60 % RH: 46 dB(A)
• Energy consumption at 25 °C / 60 % RH: 235 Wh/h · at 40 °C / 75 % RH: 255 Wh/h · at 85 °C / 85 % RH: 345 Wh/h
• Number of shelves (std./max.): 2/6
