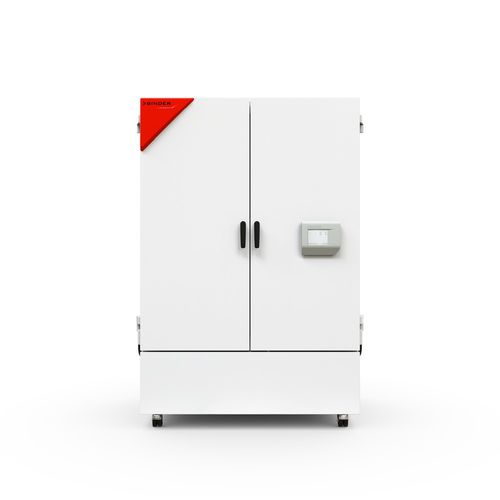

Climate chamber KBF PRO 1060

humiditytemperaturelaboratory

Product description
Versatile constant climate chamber designed for material and product testing over a wide temperature and humidity range. The KBF PRO 1060 covers temperatures from -20 °C to +100 °C and humidity control from 10 % to 98 % RH. It supports flexible water-supply options for different installation sites, uses an energy-efficient inverter cooling system (up to 40 % less energy vs. the KMF predecessor) and can be equipped with optional LED light modules for plant-growth applications.

Benefits

• Reliable long-term operation through proven compressor technology and stainless-steel interior
• Consistent climate control with advanced temperature regulation and inverter cooling
• Operator-friendly: ergonomic touchscreen program controller, adjustable operating terminal and signal triangle with illuminated status display
• Flexible installation and handling: telescopic rack rails, access ports and front twin casters with brakes

Important characteristics

• Temperature range (without humidity): -20 °C to +100 °C
• Temperature range with humidity control: 10 °C to 90 °C
• Humidity range: 10 % to 98 % RH
• APT.line™ preheating chamber technology for stable start-up conditions
• Energy-efficient inverter refrigeration using climate-neutral R‑290 refrigerant
• Door heating to prevent condensation; adjustable fan speed
• Humidity regulation via capacitive humidity sensor and fast steam humidification
• HIT sandwich housing technology and stainless-steel inner chamber
• Inner doors of metal oxide-coated safety glass
• Two standard stainless-steel racks with telescopic rails (2 / max. 16 shelves)
• Access port 80 mm × 45 mm with silicone plug (other port sizes optional)
• Internal data logger; measurement values readable in open format via USB
• Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
• Unit self-test for comprehensive status analysis; data interfaces: Ethernet, USB
• Optional accessories: LED plant-light modules, CO₂ dosing/control, door locks, calibration certificates, APT-COM™ management software, water-supply systems

Technical data (selected)
Article Number: 9020-0443
Designation: KBFPRO1060-230V
Option model: Standard
Temperature range (without humidity): -20…100 °C
Temperature range with humidity: 10…90 °C
Humidity range: 10…98 % RH
Max. heat compensation at 40 °C: 1,000 W
Temperature uniformity at 25 °C / 60 % RH: 0.3 ± K
Temperature fluctuation at 25 °C / 60 % RH: 0.1 ± K
Humidity fluctuation at 25 °C / 60 % RH: 1 ± % RH
Recovery time after 30 s door opening (25 °C / 60 % RH): 2 min
Recovery time after 30 s door opening (40 °C / 75 % RH): 6 min
Data interfaces: Ethernet, USB
Rated voltage: 208…240 V, 50/60 Hz, 1~
Nominal power: 1.9 kW; unit fuse: 16.0 A
Interior volume: 1,070 L
Net weight (empty): 360 kg
Permitted load: 200 kg; load per rack: 40 kg
Dimensions W×H×D (net): 1,285 × 1,951 × 1,175 mm
Interior dimensions W×H×D: 1,011 × 1,250 × 847 mm
Number of shelves (std./max.): 2 / 16
Sound-pressure level (25 °C / 60 % RH): approx. 50 dB(A)
Energy consumption examples: 400 Wh/h (25 °C / 60 % RH), 450 Wh/h (40 °C / 75 % RH), 665 Wh/h (85 °C / 85 % RH)
