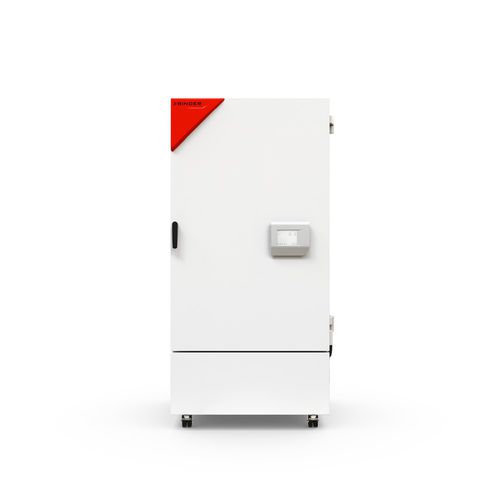

Climate chamber KBF 470

humiditytemperaturelight

Product description
The KBF 470 is a constant climate chamber designed for reliable ICH stability testing in pharmaceutical and laboratory environments. It supports long-term, accelerated and stress tests, meets key ICH requirements for precision, programming and documentation, and offers flexible water supply options for varied installation sites. Compared with the previous model, the KBF reduces energy consumption by up to 40%. Optional light modules convert the unit into an ICH photostability chamber or a plant growth chamber.

Benefits

• Maximum climate homogeneity for consistent ICH stability results, even at full load
• Long-term reliability based on proven compressor technology and a stainless-steel inner chamber
• Ergonomic operation with a touchscreen program controller and a signal triangle status indicator
• Reduced energy consumption thanks to modern inverter cooling technology

Important characteristics

• Temperature range: 0 °C to +70 °C (10–70 °C when humidity is applied)
• Humidity range: 10 % to 80 % RH
• APT.line™ preheating chamber technology
• Inverter cooling unit with climate-neutral R-600a refrigerant
• Door heating to prevent condensation; adjustable fan speed
• Humidity regulation via capacitive humidity sensor and fast-response steam humidification
• HIT sandwich housing and stainless-steel inner chamber with metal-oxide coated safety-glass inner doors
• Standard 2 shelves (max. 16); load per rack 40 kg; permitted load 200 kg
• 80 × 45 mm access port with silicone plug; floor-standing on twin casters with front brakes
• Intuitive touchscreen controller with time-segment and real-time programming; adjustable operating terminal; internal data logger with open-format export via USB
• Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms; unit self-test for status analysis
• Interfaces: Ethernet, USB; optional BINDER APT-COM™ software and optional ICH or LED plant light modules

Technical specifications (selected)

• Article numbers: 9020-0480 (230 V) / 9020-0496 (120 V)
• Model designation: KBF470-230V / KBF470UL-120V
• Interior usable volume: 472 L; inner dimensions (W×H×D): 656 × 1,250 × 575 mm
• Temperature range: 0...70 °C (10...70 °C with humidity)
• Humidity range: 10...80 % RH
• Temperature uniformity: 0.2 K (typ.); temperature fluctuation: 0.1 K (typ.)
• Humidity fluctuation: 1.5 % RH (typ.)
• Recovery time after 30 s door opening: 2 min (25 °C / 60 % RH) / 4 min (40 °C / 75 % RH)
• Max. heat compensation at 40 °C: 530 W
• Net weight (empty): 225 kg; permitted load: 200 kg; shelves (std./max.): 2/16
• Rated voltage: 220–240 V (9020-0480) / 120 V (9020-0496); frequency: 50/60 Hz; nominal power: 1.4 kW
• Sound-pressure level: 51 dB(A) at 25 °C / 60 % RH; energy consumption example: ~265–305 Wh/h depending on variant and test conditions
