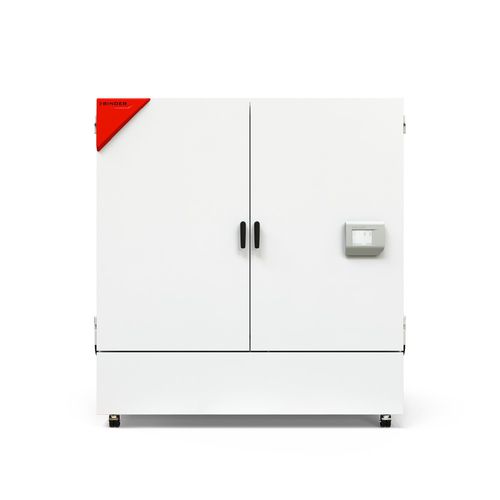

Climatic test cell KBF PRO 1600

temperaturehumidityphotostability

Product description
A powerful all-rounder among constant climate chambers: equipped with advanced temperature and humidity control, the KBF PRO 1600 performs material tests from -20 °C up to +100 °C and under THB conditions (+85 °C / 85 % RH). It provides flexible water supply options, reduces energy consumption by up to 40% versus the KMF predecessor and can be fitted with optional LED light modules for plant growth applications.

Benefits

• Reliable and powerful temperature control with proven compressor technology
• Long-term failsafe operation thanks to stainless-steel inner chamber and robust components
• Smart operation: signal triangle with illuminated status, ergonomic touchscreen program controller, racks with telescopic rails
• Energy-efficient: modern inverter cooling technology and climate-neutral R-290 refrigerant

Important characteristics

• Temperature range (without humidity): -20 °C to +100 °C
• Temperature range with humidity: 10 °C to 90 °C
• Humidity range: 10 % to 98 % RH
• APT.line™ preheating chamber technology
• Steam humidification with capacitive humidity sensor
• Door heating and adjustable fan speed
• Stainless-steel inner chamber; inner doors of metal oxide-coated safety glass
• Two stainless-steel racks with telescopic rails; access port 80 × 45 mm (silicone plug)
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger; data export via USB; Ethernet and USB interfaces
• Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
• Optional LED light modules for plant growth

Technical specifications (selected tables)
Article Number: 9020-0444
Designation: KBFPRO1600-230V
Option model: Standard

Performance - Temperature: Temperature range: -20...100 °C
Max. heat compensation at 40°C: 1,000 W

Performance - Climate: Temperature range with humidity: 10...90 °C
Humidity range: 10...98 % RH
Temperature uniformity at 25°C and 60% RH: 0.3 ± K
Temperature fluctuation at 25°C and 60% RH: 0.1 ± K
Humidity fluctuation at 25°C and 60% RH: 1 ± % RH
Recovery time after door opened 30 s (25°C/60% RH): 3 min

Electrical data: Rated Voltage: 208...240 V; Power frequency: 50/60 Hz; Nominal power: 1.9 kW; Unit fuse: 16 A; Phase: 1~

Dimensions and weights: Interior volume: 1,610 L; Net weight (empty): 450 kg; Interior dimensions (W×H×D): 1,521 × 1,250 × 847 mm; Housing (W×H×D): 1,795 × 1,951 × 1,175 mm; Number of shelves (std./max.): 2/16; Permitted load total: 200 kg; Load per rack: 40 kg; Sound level: 52 dB(A); Energy consumption examples: 490 Wh/h (25°C/60% RH), 555 Wh/h (40°C/75% RH), 825 Wh/h (85°C/85% RH).
