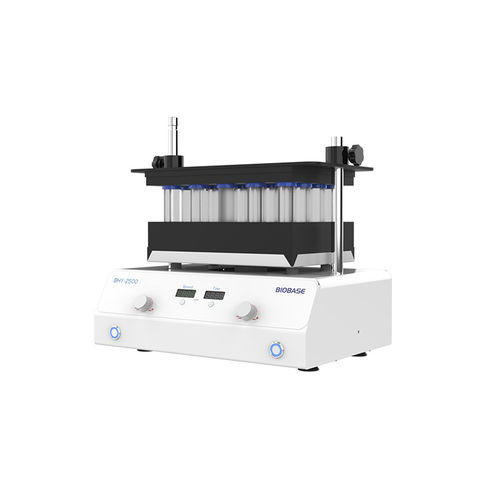

Vortex laboratory shaker BHY-2500

digitalclinicalfor research

Overview
The Multi-tube Vortex Mixer BHY-2500 (BIOBASE) is a laboratory vortex mixer engineered to mix multiple test tubes simultaneously for high-throughput sample preparation in clinical and research laboratories.

Product details
Brand: BIOBASE
Model: BHY-2500
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply

Features

• Processes up to 96 samples at once; rotation speed up to 2500 rpm.
• Adjustable run time and pause time; power-off memory preserves settings.
• Interchangeable sponge tube racks to accept a variety of tube types and sizes.
• Button-type jog mode and double-switch safety design.
• Three operation modes: jog, continuous and intermittent pulse.
• Uniform acceleration to minimise sample splashing.
• LED display for speed and time; microprocessor control for precise regulation.
• Wide voltage input for international laboratory use (AC100–240V, 50/60Hz).

Technical parameters
Model: BHY-2500
Speed range: 500–2500 rpm
Speed regulation accuracy: ±1 rpm
Amplitude: 4 mm
Time setting range: 1 s–99 h 59 min
Pulse interval timing range: 1 s–99 s
Pulse operation timing range: 1 s–99 min 59 s
Power consumption: 120 W
Power supply: AC100–240 V, 50/60 Hz
External size (L×W×H): 438×301×429 mm
Package size (W×D×H): 530×380×510 mm
Gross weight: 27 kg

Accessories
I — 48-well virus sampling tube rack · Compatible: 20 ml or 30 ml virus sampling tube · Size: 272×205×50 mm
II — 96-well virus sampling tube rack · Compatible: 7 ml or 10 ml virus sampling tube; 10 ml or 15 ml centrifuge tube · Size: 296×202×50 mm
III — Replaceable tray pad · Size: 302×212×25 mm
IV — Φ25–Φ29 mm holder · Compatible: 50 ml centrifuge tube · Size: 300×210×45 mm

Remarks
LED display, microprocessor control and multiple modes make the BHY-2500 suitable for clinical, diagnostic and research labs requiring reliable, high-throughput vortex mixing.

Characteristics / technical specifications

• Capacity: up to 96 samples simultaneously
• Speed: 500–2500 rpm (adjustable), accuracy ±1 rpm
• Amplitude: 4 mm
• Timer: 1 s–99 h 59 min; adjustable pulse interval and pulse timing
• Modes: jog, continuous, intermittent pulse
• Power: 120 W; AC100–240 V, 50/60 Hz
• Dimensions: 438×301×429 mm (L×W×H)
• Gross weight: 27 kg
