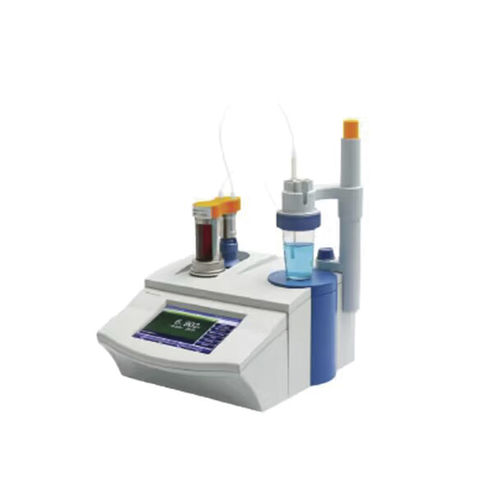

Automatic titrator Ti-50

potentiometriclaboratoryfor the food industry

Overview
Product: Automatic potential titrator Ti-50
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Data analysis functions allow review, comparison and recalculation of results.

Features

• 7" colour touchscreen with smart guide system for stepwise operation.
• Detailed display of titration methods, curves and results; pH calibration and measurement supported.
• Support for titration modes: DET (dynamic equivalence point), MET (monotone equivalence point), SET (preset endpoint) and MAT (manual titration).
• Replaceable burette selectable in 10 ml or 20 ml; burette repeatability ≤ 0.2%.
• Optional additional burette driver (one extra channel).
• Intelligent operation system: user management, method management, electrode management, titrant management and data management.
• Up to 100 user-defined methods and 10 user shortcuts; automatic calculation using predefined formulas.
• Store up to 200 titration datasets (GLP-compliant); data transfer to printer via RS-232; control by PC via USB or RS-232.
• Compatible with an automatic sampler for higher throughput.

Technical Parameters
Model: Ti-50
Burette – Repeatability: ≤ 0.2%
Burette – Accuracy: 10 ml ±0.020 ml; 20 ml ±0.030 ml
Resolution (burette): 1/30000
Measuring range: (-2000.00 ~ 2000.00) mV; (0.000 ~ 20.000) pH
Measuring resolution: 0.01 mV; 0.001 pH
Measuring accuracy: pH ±0.002; mV ±0.03% or ±0.2 mV
Electrode drift: ±0.3 mV / 3 h
Temperature compensation: range -5.0 ~ 105.0 °C; resolution 0.1 °C; accuracy ±0.2 °C
Power supply: AC adapter 100-240 V AC input → C24 V output
Dimensions: 340 × 400 × 400 mm
Weight: 10 kg

Applications

• Routine potentiometric titrations in QC laboratories (chemical, food & beverage, environmental analysis).
• R&D and process control requiring method management and GLP-compliant data storage.
• Integration with laboratory workflows via PC control, printer output and autosampler compatibility.

Options & Accessories

• Additional burette driver (optional)
• Replacement burettes: 10 ml and 20 ml
• Automatic sampler (optional)
• Printer and communication cables (RS-232 / USB)
