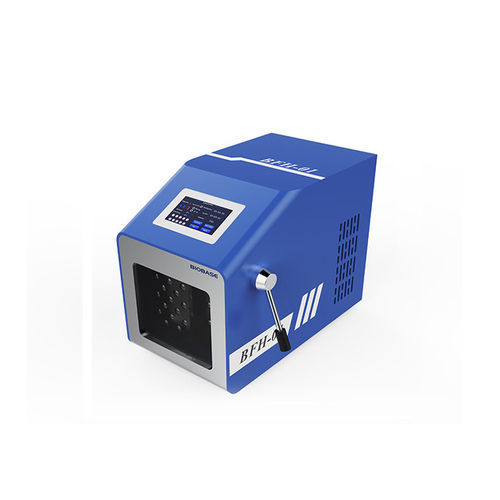

Reciprocating homogenizer BFH-01 BFH-02

back-and-forthbenchtoplaboratory

Application
The BFH series laboratory homogenizer is designed for homogenization of animal tissues and biological samples. It is suitable for sample preparation in food testing, cosmetics, clinical and molecular labs, toxin and bacterial detection, and microbial testing workflows.

Product information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Model: BFH-01 / BFH-02

Features

• 4.3 inch LCD touchscreen with microcomputer control for precise settings
• Intelligent program control with adjustable flapping time and speed
• Adjustable flapping spacing (0–50 mm) to process different sample volumes
• Disposable sterile bags (17×30 cm) for hygienic sample handling
• Toughened glass observation window and soft-start operation
• Safety features: automatic anti-pinch stop and pause function

Technical Parameters
Model: BFH-01 | BFH-02
Flapping time: 0.1s ~ 99min59s or continuous operation
Flapping speed: 3 ~ 12 times/s
Flapping spacing: 0 ~ 50 mm adjustable
Effective capacity: 3 ~ 400 ml
Program setting and storage: 10-segment combination programming
Temperature control: BFH-01: none | BFH-02: RT–60°C
Disinfection: UV lamp, wavelength 253.7 nm
Sterile bag: 17×30 cm, standard 100 pcs
Anti-pinch: automatic stop
Start mode: soft start
Power consumption: BFH-01: 200 W | BFH-02: 500 W
Power supply: AC220V±10% 50/60Hz (standard); AC110V±10% (optional)
External size (W×D×H): 420×230×330 mm
Package size (W×D×H): 540×310×410 mm
Net weight: BFH-01: 21 kg | BFH-02: 22 kg
Gross weight: BFH-01: 24 kg | BFH-02: 25 kg

Characteristics / technical specifications

• Models available: BFH-01, BFH-02
• Processing capacity: 3–400 ml
• Flapping speed: 3–12 times/s
• Adjustable flapping spacing: 0–50 mm
• Timer range: 0.1s–99min59s or continuous
• Program memory: 10-segment combination
• UV disinfection: 253.7 nm
• Sterile disposable bag: 17×30 cm (standard pack: 100 pcs)
• Safety: automatic anti-pinch stop, pause function
• Power: 200 W (BFH-01) / 500 W (BFH-02); AC220V±10% 50/60Hz standard
• Dimensions: 420×230×330 mm
• Net/Gross weight: 21/24 kg (BFH-01); 22/25 kg (BFH-02)
