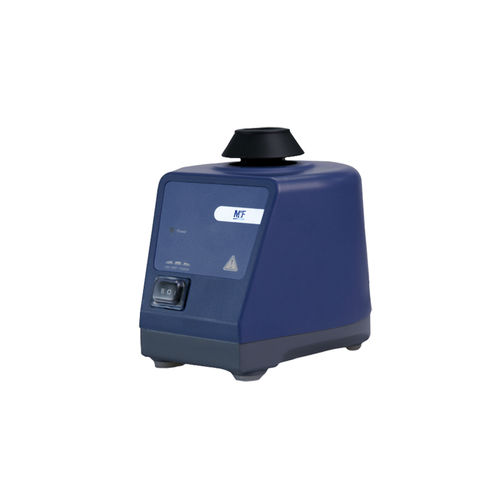

Orbital laboratory mixer MX-S MX-F

vortexanalogfor teaching

Introduction The Vortex Mixer BIOBASE MX-S / MX-F is a compact orbital mixer for rapid homogenization of small liquid samples. Designed for research, clinical and educational laboratories, it offers simple control and broad adapter compatibility for multiple tube formats.

Product details

• Brand: BIOBASE
• Model: MX-S (variable speed) / MX-F (fixed speed)
• Origin: CHINA
• Delivery time: within 7 days
• Supply: factory direct

Key features

• Operation modes: touch-activated or continuous
• Speed: 0–3000 rpm (MX-S variable); 3000 rpm fixed (MX-F)
• Orbital diameter: 4 mm
• Motor: shaded-pole; input 58 W, output 10 W
• Stability: specially designed vacuum suction feet
• Housing: die-cast aluminum construction
• Adapter compatibility: test-tube or flat-gasket accessories must match VY1.2 or VT1.3

Technical parameters

• Shaking mode: orbital
• Speed display: scale (MX-S); N/A (MX-F)
• Operation mode: continuous / touch
• Ambient temperature: 5–40°C
• Relative humidity: up to 80% RH
• Protection type: IP20
• Power consumption: 60 W
• Power supply: AC110/220V ±10%, 50/60 Hz (customizable)
• External size (W×D×H): 127 × 130 × 160 mm
• Package size (W×D×H): 290 × 240 × 220 mm
• Gross weight: 3 kg

Optional accessories

• VT1.1 — standard top (included)
• VT1.2 + VT1.3.x — multiple optional combinations
• VT1.3 + VT1.3.x variants
• PS1.0, VT1.4, VT1.5 — optional accessories

Application of accessories (examples)

• 18900034 → VT1.1
• 18900044 → VT1.2
• 18900505 → VT1.3 + VT1.3.7
• 18900020 → VT1.3.1
• 18900021 → VT1.3.2
• 18900022 → VT1.3.3
