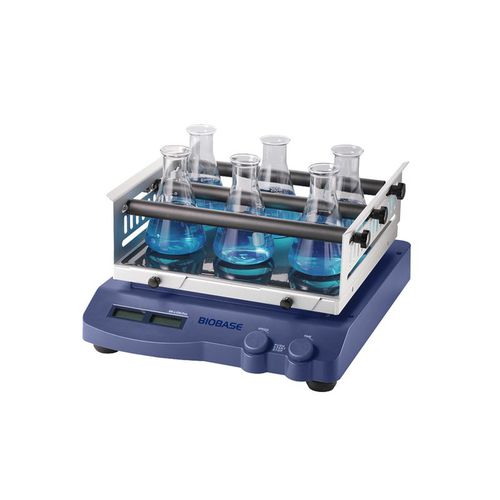

Orbital laboratory shaker SK series

lineardigitalbenchtop

Overview
Digital orbital and linear shaker designed for mixing culture dishes, flasks and beakers in laboratory workflows, with selectable orbital or linear motion and remote control capability.

General Information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory Direct Supply
• Models: SK-O330-Pro, SK-L330-Pro, SK-O180-Pro, SK-L180-Pro

Features

• Double LCDs for independent display of time and speed.
• Over-speed detection and protection to maintain set parameters.
• Interchangeable platforms and fixtures for culture dishes, flasks and tubes.
• RS232 interface for PC control and data transmission (remote monitoring and logging).

Technical Parameters

• SK-O330-Pro — Item No.: 8032220100; Oscillation: Orbital; Orbital diameter: 10 mm; Max. load (with attachment): 7.5 kg; Speed range: 100–500 rpm; External size: 370×420×100 mm; Gross weight: 14 kg; Standard accessory: 1 pc SK330.1 universal attachment.
• SK-L330-Pro — Item No.: 8032120100; Oscillation: Linear; Amplitude: 10 mm; Max. load: 7.5 kg; Speed range: 100–350 rpm; External size: 370×420×100 mm; Gross weight: 14 kg; Standard accessory: 1 pc SK330.1 universal attachment.
• SK-O180-Pro — Item No.: 8032210100; Oscillation: Orbital; Orbital diameter: 4 mm; Max. load: 2.5 kg; Speed range: 100–800 rpm; External size: 300×340×100 mm; Gross weight: 10 kg; Standard accessory: 1 pc SK180.1 universal attachment.
• SK-L180-Pro — Item No.: 8032110100; Oscillation: Linear; Amplitude: 4 mm; Max. load: 2.5 kg; Speed range: 100–350 rpm; External size: 300×340×100 mm; Gross weight: 10 kg; Standard accessory: 1 pc SK180.1 universal attachment.

Characteristics / Technical specifications

• Display: LCD for independent speed and timer readouts; Time range: 1 min to 99 h 59 min.
• Operation modes: Continuous or timed operation.
• Working environment: 5–40°C, ≤80% RH; Protection type: IP21.
• Motor: DC motor; Motor input 28 W; Motor output 15 W; Power consumption: 30 W.
• Power supply: AC100–240V, 50/60Hz.
• Interface: RS232 for remote control and data transmission.
• Standard accessories: SK330.1 (for 330 models) or SK180.1 (for 180 models); different platforms and fixtures available as options.
