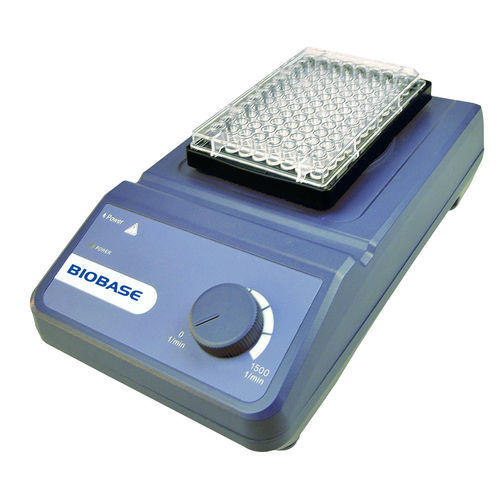

Orbital laboratory mixer MX-M

analogfor the pharmaceutical industryfor bioprocess

Overview
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory Direct Supply
Model: MX-M

Introduction
The Microplate Mixer is an advanced laboratory instrument designed to provide efficient and uniform mixing of samples in microplates. Ideal for applications in biological research, high-throughput screening, and diagnostic assays, this mixer ensures consistent agitation and thorough blending across all wells, which is critical for achieving reliable and reproducible results.

Features

• Wide speed range: 0 to 1500 rpm.
• Suitable for various mixing applications with optional adapters.
• Maintenance-free brushless DC motor.
• When the test tube adapter is selected, it must be matched with PS1.1.

Accessories

• Optional adapters for different vessel types (adapters available separately).

Technical Parameters
Model: MX-M
Item No.: 8031202000
Shaking Mode: Orbital
Orbital Diameter: 4.5 mm
Max. Shaking Weight (With attachments): 0.5 kg
Motor Type: Brushless DC motor
Motor Input: 18 W
Motor Output: 10 W
Speed Range: 0~1500 rpm (single microplate); 0~1000 rpm (double microplate)
Speed Display: Scale
Ambient Temp.: 5~40°C
Relative Humidity: 80% RH
Protection Type: IP21
Power Consumption: 20 W
Power Supply: AC100~240V, 50/60Hz
Standard Accessories: 18204340
External Size (W*D*H): 260*150*80 mm
Package Size (W*D*H): 470*250*240 mm
Gross Weight: 3 kg

Caractéristiques / spécifications techniques

• Model: MX-M
• Item No.: 8031202000
• Shaking Mode: Orbital
• Orbital Diameter: 4.5 mm
• Max. Shaking Weight (With attachments): 0.5 kg
• Motor Type: Brushless DC motor
• Motor Input: 18 W
• Motor Output: 10 W
• Speed Range: 0~1500 rpm (single microplate); 0~1000 rpm (double microplate)
• Speed Display: Scale
• Ambient Temp.: 5~40°C
• Relative Humidity: 80% RH
• Protection Type: IP21
• Power Consumption: 20 W
• Power Supply: AC100~240V, 50/60Hz
• Standard Accessories: 18204340
• External Size (W*D*H): 260*150*80 mm
• Package Size (W*D*H): 470*250*240 mm
• Gross Weight: 3 kg
