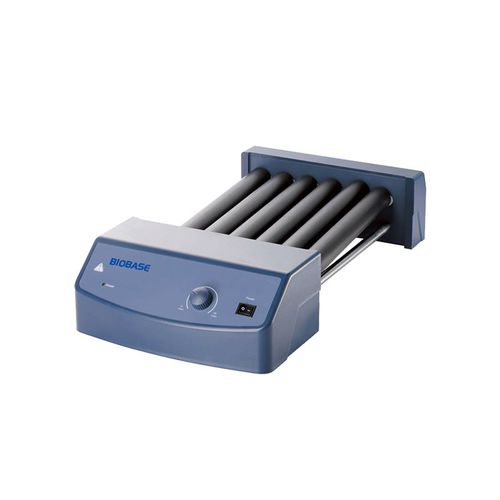

Roller laboratory mixer MX-T6 series

analogdigitalclinical

Introduction
The MX-T6 series roller mixers are designed for gentle mixing of blood samples, viscous liquids and liquid–solid suspensions. Typical uses include sample homogenization, prevention of coagulation and support of immunological procedures in clinical and research laboratories.

Product information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Models: MX-T6-S; MX-T6-Pro

Key features

• Six-roller platform providing uniform, gentle rolling and easy cleaning.
• Speed range: MX-T6-S 0~70 rpm; MX-T6-Pro 10~70 rpm.
• MX-T6-Pro includes LCD display for speed and timer; MX-T6-S uses a scale speed indicator.
• MX-T6-Pro motor: brushless DC; MX-T6-S motor: brushed DC.

Technical parameters
Model | MX-T6-S | MX-T6-Pro
Item No. | 8011312000 | 8031312100
Mixing mode | Rocking & Rolling | Rocking & Rolling
Speed range | 0~70 rpm | 10~70 rpm
Rocking amplitude | 24 mm | 24 mm
Number of rollers | 6 pcs | 6 pcs
Roller length | 280 mm | 280 mm
Max. loading weight | 4 kg | 4 kg
Timing range | N/A | 1~1199 min
Operation mode | Continuous | Continuous or timed
Speed display | Scale | LCD
Timer | N/A | Yes
Timer display | N/A | LCD
Motor type | Brushed DC motor | Brushless DC motor
Ambient temp. | 5~40°C | 5~40°C
Relative humidity | ≤80% RH | ≤80% RH
Protection type | IP21 | IP21
Power consumption | 25 W | 30 W
Power supply | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz
External size (W*D*H) | 450*250*100 mm | 450*250*100 mm
Package size (W*D*H) | 585*380*235 mm | 585*380*235 mm
Gross weight | 5 kg | 5 kg

Applications & specifications

• Suitable for blood tubes, vials and small containers used in clinical diagnostics and research labs.
• Max. payload 4 kg; avoid exceeding capacity to maintain performance.
• Operating conditions: 5–40°C, up to 80% RH; protection class IP21.
• MX-T6-Pro recommended when timed runs and LCD monitoring are required.
