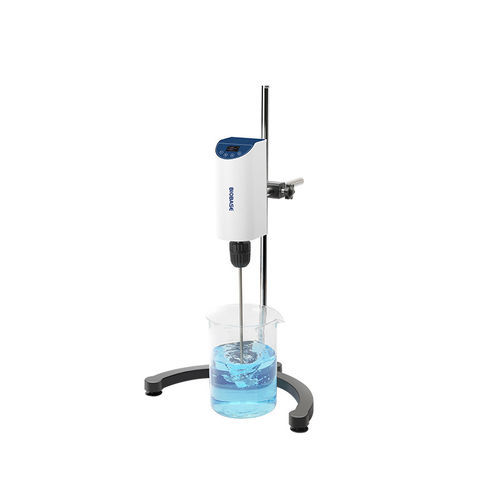

Overhead laboratory mixer OS10-Pro

digitalfor productionfor research

Introduction
BIOBASE Overhead stirrer OS10-Pro is designed for efficient mixing of liquids with varying viscosities in laboratories, research institutes and industrial processes. Model: OS10-Pro; Item No.: 8055400200.

Key features

• Knob speed control, adjustable from 200 to 2500 rpm.
• Self-locking drill chuck (tool-free) to secure the stirring paddle and prevent detachment.
• Silicone cover protects the chuck from corrosive vapors.
• Maintains constant speed despite changes in sample viscosity.
• Smooth start and operation to reduce splashing and overflow.
• Low noise operation with strong torque.
• Automatic overload protection.

Technical parameters

• Model: OS10-Pro
• Item No.: 8055400200
• Max. stirring quantity (H2O): 10 L
• Speed range: 200–2500 rpm
• Speed display: OLED (resolution ±1 rpm)
• Max. viscosity: 10000 mPas
• Motor type: DC brushed motor
• Max. torque: 20 N·cm
• Overload protection: Automatic stop
• Protection class: IP21
• Power supply: AC 100–240 V, 50/60 Hz
• Power consumption: 50 W
• External size (W×H×D): 373×238×623 mm
• Net weight: 4.8 kg
• Packing size (W×H×D): 500×400×140 mm
• Gross weight: 5.8 kg

Ordering & supply

• Brand: BIOBASE
• Product origin: China
• Lead time: within 7 days
• Supply capacity: direct from factory
