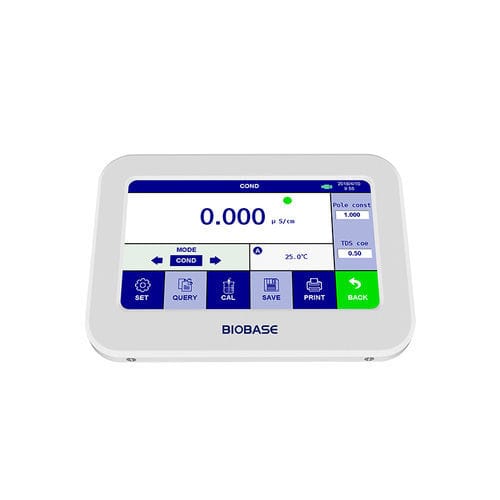

Portable conductivity meter PH-P702 BK-EC10P

TDSmodulelaboratory

Product Details

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory Direct Supply
• Model: PH-P702 / BK-EC10P

Introduction
BIOBASE portable conductivity meters PH-P702 and BK-EC10P are lightweight, field-capable instruments for rapid and traceable conductivity measurements in laboratory and on-site environments. PH-P702 supports extended measurement parameters and multiple cell constants for a wider application range.

Key features

• 7-inch color 1024×600 capacitive touchscreen with intuitive UI (PH-P702).
• Main housing in PEEK material for high temperature and corrosion resistance.
• USB 2.0 interface for data export; dedicated PC software optional (PH-P702).
• Optional Bluetooth module for wireless printing (PH-P702).
• Ingress protection: IP65 (BK-EC10P) and IP54 (PH-P702).
• Selectable cell constants (K = 0.01 / 0.1 / 1.0 / 10 cm⁻¹) covering μS/cm to mS/cm ranges.
• On-board data storage up to 500 groups.

Accessories

• BK-EC10P: Meter; conductivity standard solution 1408 µS/cm (50 ml) ×2; DJS-1 platinum-black conductivity electrode; power adapter; carrying case.
• PH-P702: Meter; platinum-black electrode; temperature electrode; power adapter; electrode holder with base; 1408 µS/cm standard solution; carrying case.

Technical parameters

• Models: BK-EC10P / PH-P702
• Conductivity ranges (by cell constant): BK-EC10P: 1–2000 μS/cm (K=1.0); optional 0.055–200 μS/cm (K=0.1); 2–200 mS/cm (K=10). PH-P702: 200 μS/cm–20 mS/cm (K=1.0); optional 0.05–1 μS/cm (K=0.01); 1–200 μS/cm (K=0.1); 20–200 mS/cm (K=10).
• Resolution: BK-EC10P: 0.01 μS/cm; PH-P702: down to 0.001 μS/cm (range-dependent).
• Accuracy: PH-P702: ±1.5% FS (model- and range-dependent).
• Additional parameters (PH-P702): resistivity 0–100 MΩ·cm; TDS 0–100 g/L; salinity 0–100 ppt; temperature 0–100 °C (resolution 0.1 °C; ±0.5 °C @ 5–60 °C).
• Data storage: 500 groups. Communication: USB 2.0; optional Bluetooth (PH-P702).
• Power: BK-EC10P battery 3.7V/4000mAh; PH-P702 battery 3.7V/1800mAh; AC adapter input 100–240V, 50/60Hz.
• Dimensions (W×D×H): BK-EC10P 200 × 80 × 50 mm; PH-P702 195 × 135 × 40 mm.
• Net weight: BK-EC10P 0.45 kg; PH-P702 600 g.
