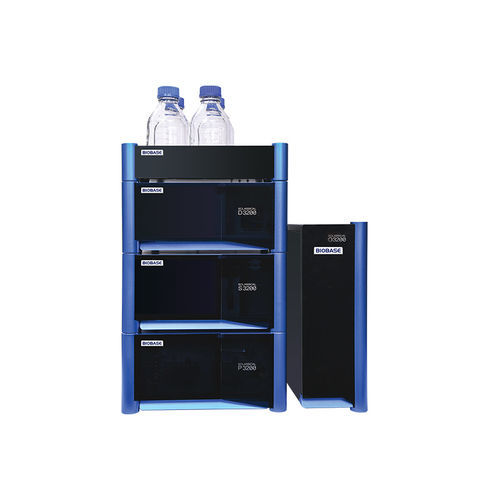

HPLC chromatography system EClassical 3200

high-performance liquidfor research and developmentELSD

Introduction
The EClassical 3200 high-performance liquid chromatography (HPLC) system by BIOBASE is a modular, configurable platform designed for routine and method-development laboratories. It supports multiple pump and detector combinations to meet regulatory requirements and ensure reproducible analytical results.

General information

• Brand — BIOBASE
• Product origin — CHINA
• Delivery time — Within 7 days
• Supply capacity — Factory direct supply
• Model — EClassical 3200

Key features

• Modular architecture: choose pumps, detectors and autosampler per application.
• Wide flow/pressure range: supports micro to preparative flow up to 70 MPa.
• Network communication: UDP for remote control and integration with workstation.

O3220 Column Oven
Temperature range — Ambient +5~85℃
Accuracy — ≤±0.5℃
Stability (precision) — ≤0.1℃
Power supply — AC220V±10%, 50Hz/130W
Dimensions/Weight — 440×160×470 mm / 11 kg

P3210 High-pressure constant-flow pump
Flow range — 0.001~10.000 mL/min (step 0.001 mL/min)
Accuracy — ≤±2.0% (0.001~10.000 mL/min)
Precision — ≤0.1% (0.100~10.000 mL/min)
Pressure range — 0~70 MPa
Communication — UDP network communication
Power supply — AC220V±10%, 50Hz/100W
Dimensions/Weight — 440×380×180 mm / 13 kg

P3220 High-pressure constant-flow pump
Flow range — 0.001~10.000 mL/min (step 0.001 mL/min)
Accuracy — ≤±2.0% (0.001~10.000 mL/min)
Precision — ≤0.1% (0.100~10.000 mL/min)
Pressure range — 0~70 MPa
Communication — UDP network communication
Power supply — AC220V±10%, 50Hz/300W
Dimensions/Weight — 440×380×180 mm / 18 kg

P3230 Low-pressure quaternary pump
Flow range — 0.001~10.000 mL/min (step 0.001 mL/min)
Accuracy — ≤±2.0% (0.001~10.000 mL/min)
Precision — ≤0.1% (0.100~10.000 mL/min)
Pressure range — 0~70 MPa
Communication — UDP network communication
Power supply — AC220V±10%, 50Hz/150W
Dimensions/Weight — 440×380×180 mm / 13 kg

D3210 UV-Vis Detector
Linearity — ≥2.0 AU
Wavelength range — 190~800 nm
Wavelength repeatability — ±0.1 nm
Wavelength accuracy — ±1.0 nm
Noise — ≤1.5×10-5 AU (single wavelength)
Drift — ≤2.0×10-4 AU (single wavelength)
Light source — Deuterium lamp, tungsten lamp
Optical path — Dual wavelength, 10 mm cell
Response time / sampling — 0.1~5 s; 5/10/20/50 Hz (double wavelength 1 Hz)
Pressure rating — cell 1000 psi
Power / Dimensions — AC220V±10%, 50Hz/100W; 440×380×160 mm / 10 kg

D3230 DAD Detector
Linearity — ≥2.0 AU
Wavelength range — 190~800 nm
Wavelength repeatability — ±0.1 nm
Wavelength accuracy — ±1.0 nm
Noise — ≤1.0×10-5 AU
Drift — ≤3.0×10-4 AU
Light source — Deuterium lamp (tungsten optional)
Exposure time — 25 ms, 50 ms, 100 ms
Sampling frequency — 5 Hz (options 2, 10, 20)
Optical path / pressure — 10 mm cell; pressure 8 MPa
Power / Dimensions — AC220V±10%, 50Hz/100W; 440×380×160 mm / 10 kg

System configuration summary
Available models — EClassical 3200 (Type I–V)
Pumps — P3210 / P3220 / P3230 (combinations vary by type)
Detectors — D3210 (UV-Vis) or D3230 (DAD) depending on configuration
Sample cell — SC3210A or SC3230A
Standard column — Supersil ODS2 5 μm 4.6×250 mm x1
Injector — Rheodyne 7725i x1 (manual); Workstation — Kromstation x1
Accessories — autosampler S3210, additional columns, ELSD, RID, fluorescence detector, O3220 column oven, solvent bottle options
Packing size & gross weight vary by component and configuration

Notes
System is modular and configurable; exact pump/detector/sampler combinations depend on selected Type I–V. For detailed integration and software options, contact BIOBASE technical support.
