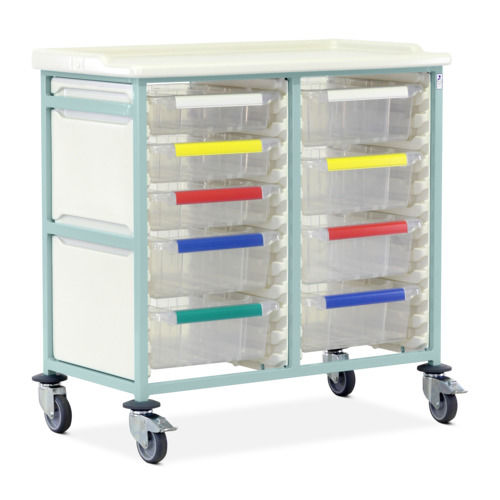

Medical trolley CTM2/10/3S6D

for general purposesfor instrumentsequipment

FEATURES

• Standard level, double column easy clean procedure trolleys
• Quick & easy disassembly, assists thorough & deep cleaning
• Recycled polypropylene one-piece top & side panels with smooth surfaces & radiused edges assists cleaning (compatible with steam cleaning)
• Top Panel - Raised edges on three sides provide defined grab points to act as push handles, whilst an integral rim at the front contains spillages (max load 30kg)
• Side Panels - Incorporate runners with positive stops, preventing trays from being accidentally withdrawn (symmetrical design allows tray insertion from either side)
• Carerail fitted to either side to support a wide range of accessories
• Translucent, impact-resistant trays & dividers with smooth surfaces & radiused edges (compatible with steam cleaning / high temperature machine washing)
• Trays feature an integral handle with a plastic clip-on label cover (coloured labels supplied: white, blue, green, yellow & red)
• Each tray supplied with 2 x long & 2 x short dividers
• Max load per tray 5kg
• Polyurethane ring buffers offer protection to both the trolley & fabric of the building
• 100mm pressed steel castors, 2 off braking

OVERALL DIMENSIONS (w x d x h)
Overall Dimensions:
Double Column - 1005 x 550 x 993mm

PLASTIC TOP
Double Column - 915 x 455 (internal) at height 968mm

TRAYS

• Shallow Tray - 355 x 405 x 100mm (internal)
• Deep Tray - 355 x 405 x 150mm (internal)

STANDARD COLOURS

• Paint - Spearmint

PRODUCT VARIANTS (code | description | overall dimensions)
CTM2/10/3S6D | 3 x 100mm, 6 x 150mm Trays | 1005 x 550 x 993mm
CTM2/10/4S5D | 4 x 100mm, 5 x 150mm Trays | 1005 x 550 x 993mm
CTM2/10/5S4D | 5 x 100mm, 4 x 150mm Trays | 1005 x 550 x 993mm
CTM2/10/6S4D | 6 x 100mm, 4 x 150mm Trays | 1005 x 550 x 993mm
CTM2/10/8D | 8 x 150mm Trays | 1005 x 550 x 993mm
CTM2/10/8S2D | 8 x 100mm, 2 x 160mm Trays | 1005 x 550 x 993mm

TECHNICAL SPECIFICATIONS

• Construction: mild steel frame with recycled polypropylene one-piece top & side panels
• Tray types & internal tray dimensions: shallow 355 x 405 x 100mm; deep 355 x 405 x 150mm
• Top panel internal size (double column): 915 x 455mm at height 968mm
• Overall (double column): 1005 x 550 x 993mm
• Maximum load: per tray 5kg; top panel containment/load area: max load 30kg
• Castors: 100mm pressed steel castors; two braked
• Protection: polyurethane ring buffers
• Accessories: carerail for accessories; trays supplied with coloured clip-on label covers (white/blue/green/yellow/red); trays supplied with 2 long + 2 short dividers
• Cleaning compatibility: smooth, radiused edges compatible with steam cleaning and high temperature machine washing
• Standard paint finish: Spearmint
