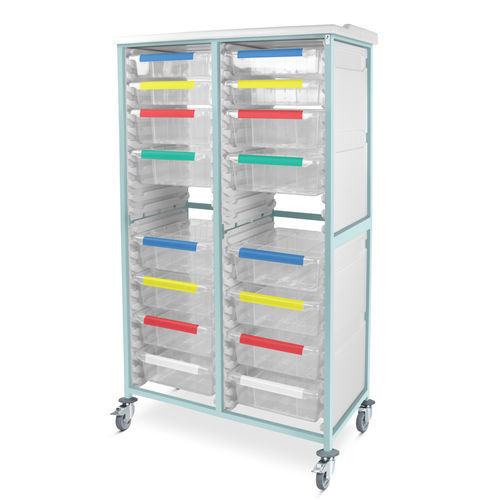

Medical trolley CRMM2/18/4S12D

for consumablesmedicationfor instruments

KEY FEATURES

• Mobile, double-column easy-clean rack designed for clinical and care environments
• Quick & easy disassembly to assist thorough and deep cleaning
• Recycled polypropylene one-piece top & side panels with smooth surfaces and radiused edges to assist cleaning (compatible with steam cleaning)
• Top Panel - Raised edges on three sides provide defined grab points to act as push handles; an integral rim at the front contains spillages (max load 30kg)
• Side Panels - Incorporate runners with positive stops, preventing trays from being accidentally withdrawn (symmetrical design allows tray insertion from either side)
• Translucent, impact-resistant trays and dividers with smooth surfaces and radiused edges (compatible with steam cleaning and high-temperature machine washing)
• Trays feature an integral handle with a plastic clip-on label cover; coloured labels supplied: white, blue, green, yellow & red
• Each tray supplied with 2 long and 2 short dividers
• Maximum load per tray: 5kg
• Polyurethane ring buffers protect trolley and surrounding fabric
• 100mm pressed steel castors, two with braking

AVAILABLE CONFIGURATIONS
Code | Description | Overall Dimensions (W x D x H)
CRMM2/18/4S12D | 4 x 100mm, 12 x 150mm trays | 1005 x 550 x 1782mm
CRMM2/18/6S12D | 6 x 100mm, 12 x 150mm trays | 1005 x 550 x 1782mm
CRMM2/18/8S10D | 8 x 100mm, 10 x 150mm trays | 1005 x 550 x 1782mm
CRMM2/18/10S10D | 10 x 100mm, 10 x 150mm trays | 1005 x 550 x 1782mm
CRMM2/18/12S8D | 12 x 100mm, 8 x 150mm trays | 1005 x 550 x 1782mm
CRMM2/18/16D | 16 x 150mm trays | 1005 x 550 x 1782mm


OVERALL DIMENSIONS (W x D x H)
Double Column - 1005 x 550 x 1782 mm

Plastic Top (internal) - Double Column: 915 x 455 mm at height 1757 mm

Trays (internal):
Shallow Tray - 355 x 405 x 100 mm
Deep Tray - 355 x 405 x 150 mm


STANDARD COLOURS

• Paint - Spearmint

TECHNICAL SPECIFICATIONS

• Product type: Mobile double-column caretray rack for clinical environments
• Materials: Mild steel frame; recycled polypropylene one-piece top and side panels; translucent impact-resistant trays
• Top panel max load: 30 kg
• Max load per tray: 5 kg
• Tray internal sizes: Shallow 355 x 405 x 100 mm; Deep 355 x 405 x 150 mm
• Plastic top internal dimension (double column): 915 x 455 mm at height 1757 mm
• Overall dimensions (double column): 1005 x 550 x 1782 mm (W x D x H)
• Castors: 100 mm pressed steel castors, 2 with braking
• Buffers: Polyurethane ring buffers
• Tray labelling: Integral handle with plastic clip-on label cover; coloured labels supplied (white, blue, green, yellow, red)
• Divider supply: Each tray supplied with 2 long and 2 short dividers
• Standard finish colour: Spearmint
• Available configurations / codes: CRMM2/18/4S12D; CRMM2/18/6S12D; CRMM2/18/8S10D; CRMM2/18/10S10D; CRMM2/18/12S8D; CRMM2/18/16D
