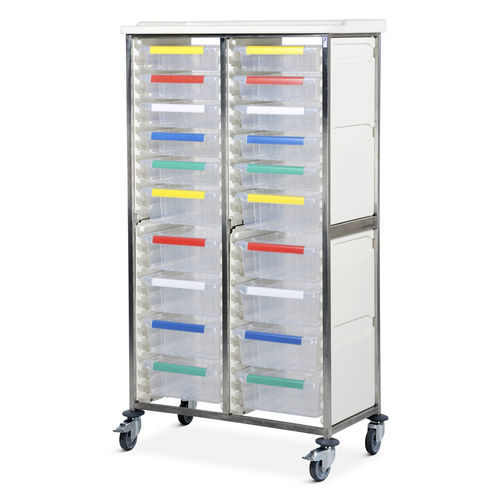

Medical trolley CRSM2/18/8S10D

for consumablesmedicationfor instruments

FEATURES

• Mobile double-column, easy-clean tray rack for storage and transport of medical trays
• Quick, tool-free disassembly for thorough deep cleaning
• Seamlessly welded one-piece 304 grade stainless steel frame
• Recycled polypropylene one-piece top and side panels with smooth surfaces and radiused edges (compatible with steam cleaning)
• Top panel — raised edges on three sides provide grip points and an integral front rim to contain spillages (max load 30 kg)
• Side panels — incorporate runners with positive stops to prevent accidental tray withdrawal; symmetrical design allows tray insertion from either side
• Translucent impact-resistant polypropylene trays and dividers with smooth surfaces and radiused edges (compatible with steam cleaning and high-temperature machine washing)
• Trays include integral handle with plastic clip-on label cover; label colours supplied: white, blue, green, yellow, red
• Each tray supplied with 2 long and 2 short dividers
• Maximum load per tray: 5 kg
• Polyurethane ring buffers protect trolley and surrounding surfaces
• 100 mm pressed steel castors, two with braking

OVERALL DIMENSIONS (w x d x h)
Double Column - 1005 x 550 x 1782 mm

PLASTIC TOP
Double Column - 915 x 455 (internal) at height 1757 mm

TRAYS

• Shallow Tray - 355 x 405 x 100 mm (internal)
• Deep Tray - 355 x 405 x 150 mm (internal)

TECHNICAL SPECIFICATIONS

• Model: Caretray Rack
• Frame material: 304 grade stainless steel, seamlessly welded one-piece frame
• Top & side panels: Recycled polypropylene one-piece (steam-clean compatible)
• Tray material: Translucent, impact-resistant polypropylene (compatible with steam cleaning and high-temperature machine washing)
• Top panel max load: 30 kg
• Tray max load: 5 kg per tray
• Tray dividers supplied: 2 long + 2 short per tray
• Label system: Integral handle with plastic clip-on label cover; supplied label colours: white, blue, green, yellow, red
• Bump protection: Polyurethane ring buffers
• Castors: 100 mm pressed steel castors, 2 with braking
• Cleaning: Designed for easy disassembly to assist thorough and deep cleaning
