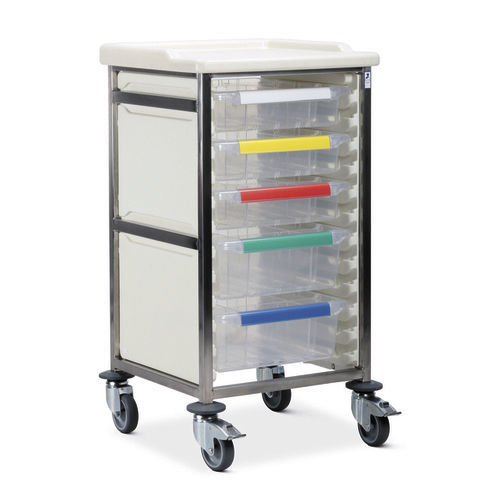

Medical trolley CTS1/10/ series

for general purposesequipmentfor medical devices

Features

• Single-column procedure trolley for standard-level clinical use, designed for ease of cleaning and infection control.
• Quick and simple disassembly to enable thorough deep cleaning.
• One-piece, seamlessly welded 304 grade stainless steel frame.
• One-piece recycled polypropylene top and side panels with smooth radiused edges; steam-clean compatible.
• Top panel: raised edges on three sides act as grab/push points; front rim contains spillages (max load 30 kg).
• Side panels: runners with positive stops prevent accidental tray withdrawal; symmetrical design allows tray insertion from either side.
• Carerail fitted to either side to accept a wide range of clinical accessories.
• Translucent, impact-resistant trays and dividers with radiused edges; compatible with steam cleaning and high-temperature machine washing.
• Trays include integral handle with clip-on plastic label cover; supplied coloured labels: white, blue, green, yellow, red.
• Each tray supplied with two long and two short dividers.
• Maximum load per tray: 5 kg.
• Polyurethane ring buffers protect the trolley and surrounding surfaces.
• 100 mm pressed steel castors, two braked.

Overall dimensions (W x D x H)
Single Column - 550 x 550 x 993 mm

Plastic Top
Single Column - 455 x 455 mm (internal) at height 968 mm

Trays

• Shallow Tray - 355 x 405 x 100 mm (internal)
• Deep Tray - 355 x 405 x 150 mm (internal)

Options / Codes
Code | Description | Express Delivery | Overall Dimensions (W x D x H)
CTS1/10/1S3D | 1 x 100 mm, 3 x 150 mm Trays | | 550 x 550 x 993 mm
CTS1/10/3S2D | 3 x 100 mm, 2 x 150 mm Trays | ✓ | 550 x 550 x 993 mm
CTS1/10/4D | 4 x 150 mm Trays | | 550 x 550 x 993 mm
CTS1/10/4S1D | 4 x 100 mm, 1 x 150 mm Trays | | 550 x 550 x 993 mm
CTS1/10/6S | 6 x 100 mm Trays | | 550 x 550 x 993 mm


Technical specifications

• Frame material: 304 grade stainless steel, one-piece seamlessly welded construction.
• Top & side panels: recycled polypropylene, one-piece moulding; steam-clean compatible.
• Tray material: translucent impact-resistant plastic; compatible with steam cleaning and high-temperature machine washing.
• Tray internal sizes: shallow 355 x 405 x 100 mm; deep 355 x 405 x 150 mm.
• Top internal size (single column): 455 x 455 mm; top working height 968 mm.
• Maximum tray load: 5 kg per tray; maximum top load: 30 kg.
• Castors: 100 mm pressed steel, two braked.
• Protection: polyurethane ring buffers.
• Accessories: carerail for accessory support; trays supplied with clip-on label covers and coloured labels (white, blue, green, yellow, red); each tray supplied with two long and two short dividers.
• Design features: positive-stop tray runners (symmetrical insertion); raised top rim for spill containment; designed for easy disassembly and deep cleaning.
