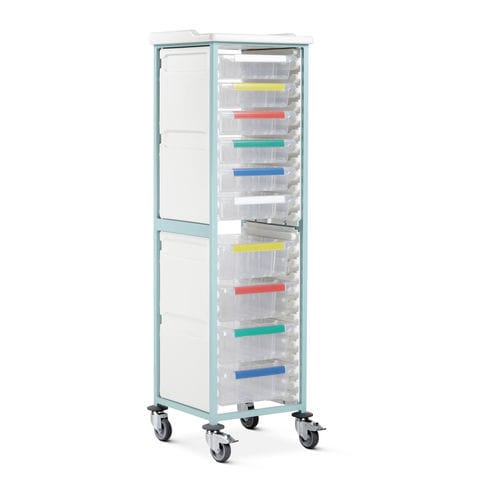

Medical trolley CRMM1/18/6S4D

for consumablesmedicationfor instruments

Product name
Caretray Rack - Mild Steel, Mobile, Single Column

Features

• Mobile, single column easy clean racks
• Quick & easy disassembly to assist thorough & deep cleaning
• Recycled polypropylene one-piece top & side panels with smooth surfaces and radiused edges to assist cleaning (compatible with steam cleaning)
• Top Panel: Raised edges on three sides provide defined grab points to act as push handles; integral rim at the front contains spillages (maximum top load 30 kg)
• Side Panels: Incorporate runners with positive stops to prevent trays being accidentally withdrawn (symmetrical design allows tray insertion from either side)
• Translucent, impact-resistant trays & dividers with smooth surfaces and radiused edges (compatible with steam cleaning / high temperature machine washing)
• Trays feature an integral handle with a plastic clip-on label cover (coloured labels supplied: white, blue, green, yellow & red)
• Each tray supplied with 2 long & 2 short dividers
• Maximum load per tray: 5 kg
• Polyurethane ring buffers to protect trolley and building fabric
• 100 mm pressed steel castors, two with braking

Overall dimensions (w x d x h)
Overall Dimensions

Single Column - 550 x 550 x 1782 mm

Plastic top
Single Column - internal top 455 x 455 mm at height 1757 mm

Tray internal dimensions

• Shallow Tray - 355 x 405 x 100 mm (internal)
• Deep Tray - 355 x 405 x 150 mm (internal)

Standard colours

• Paint - Spearmint

Available configurations / typical codes (examples shown on page)

• CRMM1/18/2S6D — 2 x 100 mm, 6 x 150 mm trays — 550 x 550 x 1782 mm
• CRMM1/18/4S5D — 4 x 100 mm, 5 x 150 mm trays — 550 x 550 x 1782 mm
• CRMM1/18/5S5D — 5 x 100 mm, 5 x 150 mm trays — 550 x 550 x 1782 mm
• CRMM1/18/6S4D — 6 x 100 mm, 4 x 150 mm trays — 550 x 550 x 1782 mm
• CRMM1/18/8D — 8 x 150 mm trays — 550 x 550 x 1782 mm
• CRMM1/18/3S6D — 3 x 100 mm, 6 x 150 mm trays — 550 x 550 x 1782 mm
• CRMS1/16/3S6D — alternative series example (different widths/depths shown on page)

Technical specifications

• Product type: Caretray rack, single column, mobile
• Frame / structure: Mild steel
• Top & side panels: Recycled polypropylene one-piece
• Tray material: Translucent impact-resistant plastic
• Top maximum load: 30 kg
• Tray maximum load: 5 kg each
• Castors: 100 mm pressed steel (2 with brake)
• Buffers: Polyurethane ring buffers
• Cleaning compatibility: Steam cleaning and high-temperature machine washing where stated
• Standard painted finish: Spearmint
• Typical overall footprint: 550 x 550 mm; typical overall height: 1782 mm (single column)
