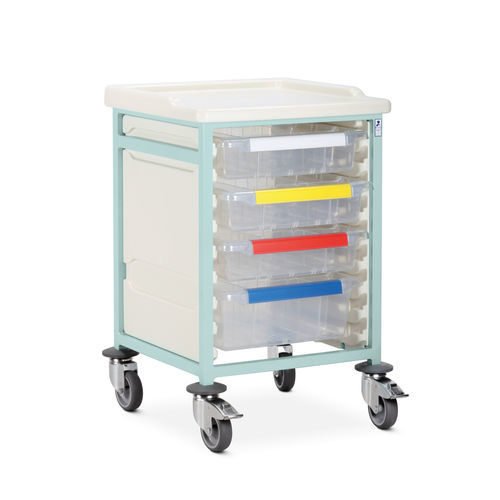

Medical trolley CTM1/08/3S1D

for general purposesfor instrumentsequipment

FEATURES

• Low-level, single-column easy-clean procedure trolleys designed for clinical and care environments
• Quick and simple disassembly to assist thorough deep cleaning
• Recycled polypropylene one-piece top and side panels with smooth surfaces and radiused edges; compatible with steam cleaning
• Top Panel - Raised edges on three sides provide defined grab points to act as push handles; an integral front rim contains spillages (max load 30 kg)
• Side Panels - Incorporate runners with positive stops to prevent trays being accidentally withdrawn; symmetrical design allows tray insertion from either side
• Carerail fitted to either side to support a wide range of accessories
• Translucent, impact-resistant trays and dividers with smooth surfaces and radiused edges; compatible with steam cleaning and high-temperature machine washing
• Trays feature integral handles with plastic clip-on label covers (coloured labels supplied: white, blue, green, yellow and red)
• Each tray supplied with 2 long and 2 short dividers
• Maximum load per tray: 5 kg
• Polyurethane ring buffers provide protection to both the trolley and surrounding fabrics
• 100 mm pressed steel castors, two with braking

OVERALL DIMENSIONS (w x d x h)
Single Column - 550 x 550 x 807 mm

PLASTIC TOP
Single Column - 455 x 455 mm (internal) at height 782 mm

TRAYS

• Shallow Tray - 355 x 405 x 100 mm (internal)
• Deep Tray - 355 x 405 x 150 mm (internal)

STANDARD COLOURS

• Paint - Spearmint

TECHNICAL SPECIFICATIONS

• Construction: Mild steel frame with recycled polypropylene one-piece top and side panels
• Column: Single-column, low-level design
• Top panel maximum load: 30 kg
• Tray maximum load: 5 kg per tray
• Tray types & internal sizes: Shallow 355 x 405 x 100 mm; Deep 355 x 405 x 150 mm
• Top panel internal footprint (single column): 455 x 455 mm at height 782 mm
• Overall dimensions (single column): 550 x 550 x 807 mm (W x D x H)
• Castors: 100 mm pressed steel, two castors with braking
• Buffers: Polyurethane ring buffers fitted
• Accessories: Carerail fitted to either side; trays include integral handles and clip-on label covers; trays supplied with dividers (2 long, 2 short)
• Cleaning: Compatible with steam cleaning and high-temperature machine washing for trays; designed for quick disassembly for deep cleaning
