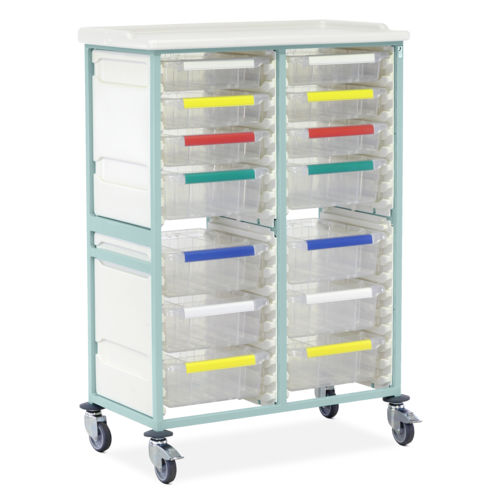

Medical trolley CTM2/14/6S8D

for consumablesmedicationfor instruments

FEATURES

• High-level double-column care trolley designed for easy disassembly to support thorough deep cleaning and infection control
• One-piece recycled polypropylene top and side panels with smooth radiused edges; compatible with steam cleaning and high-temperature machine washing
• Top Panel - Raised edges on three sides create defined push/grab points; integral front rim contains spillages (max load 30 kg)
• Side Panels - Integrated runners with positive stops prevent accidental tray withdrawal; symmetrical design allows tray access from either side
• Carerail fitted to either side to accept a broad range of clinical accessories
• Translucent, impact-resistant polypropylene trays and dividers with smooth, radiused surfaces for ease of cleaning
• Trays include integral handles with clip-on label covers; coloured labels supplied (white, blue, green, yellow, red)
• Each tray supplied with 2 long and 2 short dividers
• Maximum load per tray: 5 kg
• Polyurethane ring buffers protect the trolley and adjacent surfaces
• 100 mm pressed steel castors, two braked for secure positioning

OVERALL DIMENSIONS (W x D x H)
Double Column - 1005 x 550 x 1410 mm

PLASTIC TOP
Double Column - 915 x 455 mm (internal) at height 1385 mm

TRAYS
Shallow Tray - 355 x 405 x 100 mm (internal)
Deep Tray - 355 x 405 x 150 mm (internal)

STANDARD COLOURS

• Paint - Spearmint

TECHNICAL SPECIFICATIONS

• Product type: Caretray Trolley (mild steel, high-level, double column)
• Top & side panels: recycled one-piece polypropylene
• Tray material: translucent, impact-resistant polypropylene (steam-cleaning and high-temperature machine washing compatible)
• Tray internal sizes: shallow 355 x 405 x 100 mm; deep 355 x 405 x 150 mm
• Top internal dimension (double column): 915 x 455 mm (at height 1385 mm)
• Overall dimensions (double column): 1005 x 550 x 1410 mm (W x D x H)
• Max load top panel: 30 kg
• Max load per tray: 5 kg
• Castors: 100 mm pressed steel, two braked
• Buffers: polyurethane ring buffers
• Accessories: carerail both sides; trays with integral handles and clip-on label covers (labels supplied: white, blue, green, yellow, red); trays supplied with 2 long + 2 short dividers
• Cleaning: quick disassembly for deep cleaning; compatible with steam cleaning and high-temperature machine washing
• Standard finish: Spearmint paint
