- Medical trolley
- Bristol Maid Hospital Metalcraft
Medical trolley CTM2/08 seriesfor consumablesmedicationfor instruments
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Use
- for instruments, medication, for consumables
- Function
- treatment
- Material
- plastic, metal
- Components
- with tray
- Configuration
- double-module
Description
PRODUCT OVERVIEW
KEY FEATURES
DIMENSIONS (W x D x H)
TRAYS (internal)
STANDARD COLOURS
VARIANTS
TECHNICAL SPECIFICATIONS
APPLICATIONS

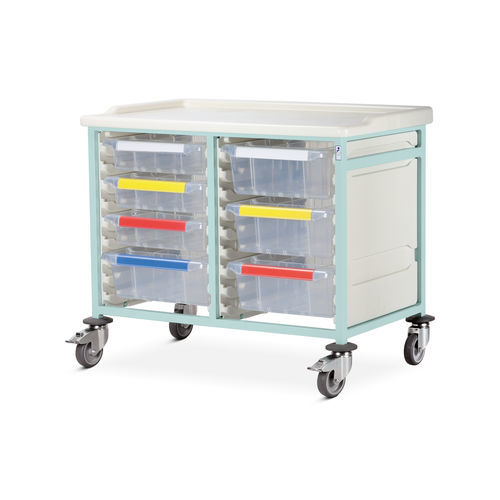

- Caretray procedure trolley CTM2/08 — low-level, double-column trolley with a mild steel frame and recycled polypropylene one-piece top and side panels for clinical procedure use.
KEY FEATURES
- Low level, double column design for easy access during bedside procedures
- Quick and easy disassembly to enable thorough cleaning; compatible with steam cleaning
- Recycled polypropylene one-piece top and side panels with smooth, radiused edges; top panel has raised edges on three sides providing push/grab points and an integral front rim to contain spillages (top panel max load 30 kg)
- Side panels incorporate runners with positive stops to prevent accidental tray withdrawal; symmetrical design allows tray insertion from either side
- Carerail/side rail fitted to either side to support a wide range of accessories
- Translucent, impact-resistant polypropylene trays and dividers with integral handles and clip-on label covers; coloured labels supplied: white, blue, green, yellow and red
- Each tray supplied with 2 long and 2 short dividers; max load per tray 5 kg
- Polyurethane ring buffers protect the trolley and surrounding fabric
- 100 mm pressed steel castors, two with braking
DIMENSIONS (W x D x H)
- Double Column - 1005 x 550 x 807 mm
- Plastic Top (Double Column internal) - 915 x 455 mm at height 782 mm
TRAYS (internal)
- Shallow Tray - 355 x 405 x 100 mm (internal)
- Deep Tray - 355 x 405 x 150 mm (internal)
STANDARD COLOURS
- Paint: Spearmint
VARIANTS
- CTM2/08/3S4D — 3 x 100 mm trays, 4 x 150 mm trays — 1005 x 550 x 807 mm
- CTM2/08/4S3D — 4 x 100 mm trays, 3 x 160 mm trays — 1005 x 550 x 807 mm
- CTM/208/6D — 6 x 160 mm trays — 1005 x 550 x 807 mm
- CTM2/08/6S2D — 6 x 100 mm trays, 2 x 160 mm trays — 1005 x 550 x 807 mm
- CTM2/08/7S1D — 7 x 100 mm trays, 1 x 160 mm tray — 1005 x 550 x 807 mm
- CTM2/08/8S — 8 x 100 mm trays — 1005 x 550 x 807 mm
TECHNICAL SPECIFICATIONS
- Type: Caretray procedure trolley, low level, double column
- Frame / construction: mild steel structure
- Top / side panels: recycled polypropylene one-piece components, smooth radiused edges, steam-clean compatible
- Tray materials: translucent, impact-resistant polypropylene (compatible with steam cleaning and high-temperature machine washing)
- Tray internal sizes: shallow 355 x 405 x 100 mm; deep 355 x 405 x 150 mm
- Top panel internal size (double column): 915 x 455 mm at height 782 mm
- Overall trolley (double column): 1005 x 550 x 807 mm
- Max load per tray: 5 kg; top panel max load: 30 kg
- Castors: 100 mm pressed steel; 2 braking castors
- Protective buffers: polyurethane ring buffers
- Accessories: carerail for accessories; trays include clip-on label covers; coloured labels supplied
APPLICATIONS
- Intended for clinical environments: wards, procedure rooms, outpatient clinics and care facilities where organised, easily cleaned storage and access to instruments and disposables is required
