PVC infusion set
with Y portwith light protectionwith particle contamination filter

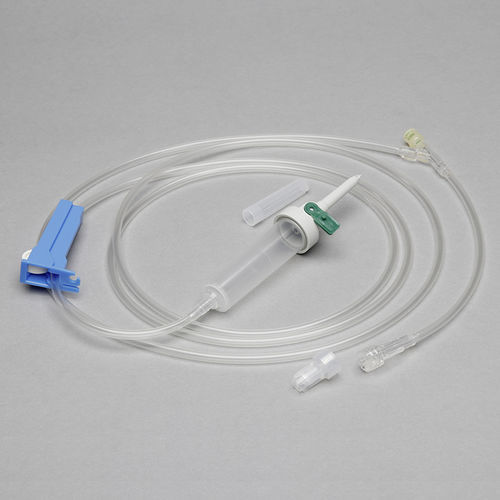

PVC infusion set - CODAN - with Y port / with light protection / with particle contamination filter
PVC infusion set - CODAN - with Y port / with light protection / with particle contamination filter
PVC infusion set - CODAN - with Y port / with light protection / with particle contamination filter - image - 2
PVC infusion set - CODAN - with Y port / with light protection / with particle contamination filter - image - 3
PVC infusion set - CODAN - with Y port / with light protection / with particle contamination filter - image - 4
PVC infusion set - CODAN - with Y port / with light protection / with particle contamination filter - image - 5
PVC infusion set - CODAN - with Y port / with light protection / with particle contamination filter - image - 6
PVC infusion set - CODAN - with Y port / with light protection / with particle contamination filter - image - 7
Add to favorites
Compare this product

Characteristics

Material
PVC
Options
with drip chamber, with stopcock, with Y port, with particle contamination filter, with light protection, with hemostasis valve

Description

Overview
CODAN provides a range of IV administration systems designed for neonatology and paediatric care. These systems address clinical needs such as total parenteral nutrition (TPN), concomitant medication delivery, very low infusion flow rates and minimal extracorporeal volume. Solutions are developed with neonatal/pediatric specialists and under strict hygiene guidelines to reduce treatment-related risks.

Features
  • Systems for TPN (Total Parenteral Nutrition) and concurrent medications
  • Light-protected administration options for vitamin delivery
  • Separate channels for lipids and lipid-containing solutions
  • Drip chamber calibrated to 60 drops = 1 ml
  • 0.2 µm I.V.STAR® filter for bacteria, particle and air separation (filter surfaces: 1.6 cm², 4.5 cm²)
  • 1.2 µm I.V.STAR® filter for lipids and lipid-containing solutions (filter surfaces: 1.6 cm², 4.5 cm²)
  • Needle-free adapter SWAN-LOCK® to provide an infection barrier and prevent air ingress
  • CODAN Check Valve to prevent solution backflow
  • Designs for minimal priming/filling volume
  • Compatible with syringe pump therapy (CODAN syringe pumps)
  • Tubing options: transparent PVC, LIGHT-SAFE™ (yellow) PVC with TOTM plasticiser, or green line® PVC-free tubing


Clinical benefits
These systems support safe parenteral nutrition and medication administration in vulnerable neonates and children by minimising extracorporeal volume, enabling precise low-flow infusion control, separating lipid lines, and enhancing infection control at access points.

Technical specifications
  • Drip orifice: 60 drops = 1 ml
  • Filter options: 0.2 µm (bacteria/particle/air) and 1.2 µm (lipids); available filter surfaces 1.6 cm² and 4.5 cm²
  • Tubing: transparent PVC; LIGHT-SAFE™ (yellow) PVC with TOTM plasticiser; green line® PVC-free alternative
  • Needle-free connection: SWAN-LOCK® adapter (infection barrier, reduces air inclusion)
  • Backflow prevention: CODAN Check Valve
  • Engineered for minimal priming/filling volume and low flow administration
  • Compatible with syringe pump-based therapy (CODAN syringe pumps)
