Tilting support arm WM001C-100

swivelfor monitorsmedical

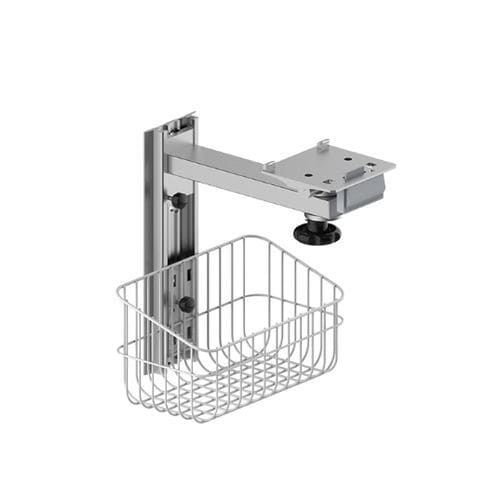

Product overview The WM001C-100 is a wall-mounted monitor bracket designed for clinical environments to support bedside display and monitoring equipment. Constructed in anodized aluminum alloy, it provides a fixed, space-saving mounting solution for mobile monitoring workflows in wards, emergency and outpatient areas.

Typical application scenarios

• Ward bedside monitoring — fixed wall mounting for continuous or intermittent patient observation.
• ICU and emergency — compact mounting where floor space is limited and reliable positioning is needed.
• Outpatient and exam rooms — dedicated mounting for stationary displays used during examinations.
• Shared equipment stations — secure attachment point for displays that remain at specific clinical locations.

Equipment adaptation and workflow value The WM001C-100 integrates monitor mounting with cable routing and optional accessory attachment, enabling standardised placement of displays across departments. This reduces the need for temporary carts, simplifies device handover and supports consistent clinical workflows.

Adaptation direction

• Patient monitors
• Display terminals and modules
• Power and cable assemblies
• Storage baskets and mounting accessories

Design highlights

• Load capacity suited for common clinical monitors — stable support for displays up to specified rating.
• Mechanical adjustment — ±15° pitch for optimal viewing at bedside.
• Full rotation — 360° plate rotation for flexible orientation.
• Wall-fixed installation — expansion-screw mounting for secure attachment to solid walls.

Recommended accessories

• Basket with Cord Wrap and Cable Hooks — Dimensions: 325×215×143 mm; Material: Steel; Max load: 3 kg.
• Basket — Dimensions: 285×158×148 mm; Material: Steel.

Basic information
Model: E..W.TA.WM001-100
Load capacity: 30KG
Pitch angle: ±15°
M plate rotated angle: 360°
Material: Aluminum alloy (surface anodic oxidation)
Fixing method: Expansion screw to fix the plate on the wall

Product description Wall-mounted monitor bracket for clinical use. The WM001C-100 offers a compact, fixed mounting option to support bedside monitoring displays and related accessories across hospital departments.

Procurement keywords Monitor wall mount; Wall bracket for monitor; Medical monitor mount; Patient monitor wall bracket; WM001; CORITON

Technical specifications

• Model: E..W.TA.WM001-100
• Load capacity: 30KG
• Pitch angle: ±15°
• M plate rotated angle: 360°
• Material: Aluminum alloy (surface anodic oxidation)
• Fixing method: Expansion screw to fix the plate on the wall
• Page code: KRT-P-1058
