Tilting support arm WM001E
swivelfor monitorsmedical

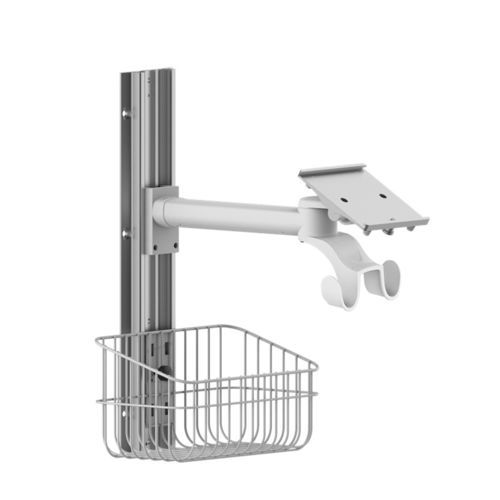

Tilting support arm - WM001E - Coriton Instrument Co., Ltd. - swivel / for monitors / medical
Tilting support arm - WM001E - Coriton Instrument Co., Ltd. - swivel / for monitors / medical
Add to favorites
Compare this product

Characteristics

Function
tilting, swivel
Applications
for monitors
Application domain
medical
Configuration
wall-mounted
Other characteristics
with cable integration, aluminum alloy
Load capacity

15 kg, 30 kg
(33.1 lb, 66.1 lb)

Description

Overview
CORITON WM001E is a wall-mount medical arm designed to support patient monitors and similar clinical displays. It is intended for hospital wards, outpatient rooms, emergency departments, diagnostic areas and mobile clinical workflows requiring stable device support, integrated cable routing and flexible positioning. The unit supports OEM/ODM integrations that require easy installation and clean equipment integration.

Specifications
  • Upper wall channel: Standard channel 320 mm (longer or shorter optional)
  • Arm length: 293 mm
  • Swivel range: ±90°
  • Tilt range: 0 ~ -25° or 0 ~ -120°
  • Total arm maximum load: 30 kg
  • Tilt mechanism maximum load: 15 kg


Basic information
Model: WM001E
Upper wall channel: Standard channel 320 mm (longer or shorter optional)
Arm length: 293 mm
Basket: Optional
Swivel range: ±90°
Tilt range: 0 ~ -25° or 0 ~ -120°
Total arm maximum load: 30 kg
Tilt mechanism maximum load: 15 kg
Wall install method: Standard channel
Device install method: Socket channel
Hide cable: Yes
Color: Medical White
Material: Aluminum alloy
Application: Patient monitor, display, ECG machine

Recommended accessories
  • Hook — plastic or metal options
  • Metal hook
  • Basket with cord wrap and cable hooks — Dimensions: 325 × 215 × 143 mm; Material: Steel; Maximum load: 3 kg
  • Basket — Dimensions: 285 × 158 × 148 mm; Material: Steel
  • Bin with cable hooks — Dimensions: 340 × 213 × 149 mm; Material: ABS


Product description
The CORITON WM001E wall mount provides a compact, adjustable mounting solution for patient monitoring equipment. Concealed cable routing and a durable aluminum structure facilitate clean installation and efficient clinical workflows. The design allows for secure device attachment, repeatable positioning and compatibility with common medical mounting standards, supporting OEM/ODM customization when required.

Technical features
  • Model: WM001E
  • Material: Aluminum alloy
  • Finish color: Medical White
  • Concealed cable routing
  • Wall mounting via standard channel; device attaches via socket channel
