Height-adjustable support arm WM800

tiltingswivelfor monitors

Product detailed information

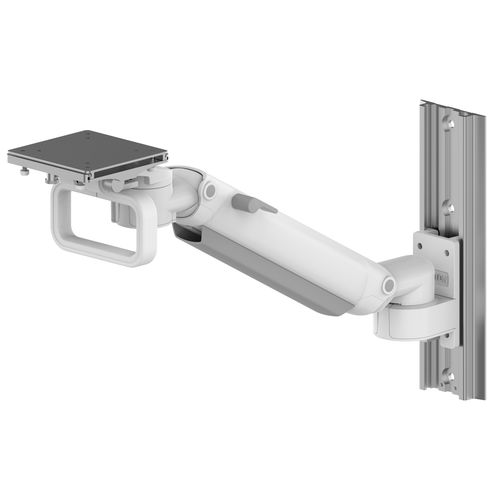

This WM800-08522 medical mounting arm is designed for patient monitor trolleys, mobile computer workstations and device mounting in clinical environments. It provides controlled height adjustment, concealed cabling and a die-cast aluminum core intended for safe integration with anesthesia machines, patient monitors and display screens. Suitable for hospital wards, outpatient rooms, emergency departments, diagnostic areas and mobile clinical workflows. OEM/ODM integration is supported for medical trolley and mounting projects that require practical installation and clean equipment routing.

Variable Height Arm with handle Specification

• Height adjust method: The height can be locked and released by a single-click
• Height adjustment: 450mm
• Total arm maximum load: 1000N (gas spring load: 2.5~6.5 kg)
• Alternative load options: 1500N (gas spring load: 6~11.5 kg); 2000N (gas spring load: 11~16.5 kg)

Recommended accessories

• Mounting Plate
• Extended Monitor Mounting Plate – WM800 Workstation Adapter Handle
• Cable Management Duct – Suitable for WM800 arm
  • Material: ABS
  • Used for WM800 arm to install cable management function; improves overall appearance and comfort
• Seismic Channel
  • Material: Aluminum
  • Length: 482mm
• Flangeless wiring Channel with Removable Cover
  • Material: Aluminum

Basic Information
Model: WM800-08522
Channel: Optional Channel 482mm / 320mm
Arm length: 576mm
Height adjust method: The height can be locked and released by a single-click
Height adjustment: 450mm
Swivel range: ±90°
Tilt range: 0 ~ -25° or 0 ~ -120°
Total arm maximum load: 1000N (gas spring load: 2.5~6.5 kg) / 1500N (6~11.5 kg) / 2000N (11~16.5 kg)
Concealed cabling: Yes
Color: Medical White
Material: Aluminum Alloy
Main Processing Method: Designed with a die-cast aluminum core for strength
Net Weight: 4 kg
Application: Anesthesia machine, Patient monitor, Screen

Technical specifications

• Model: WM800-08522
• Series: WM800
• Arm length: 576 mm
• Height adjustment stroke: 450 mm
• Height adjust method: Single-click lock/release
• Swivel range: ±90°
• Tilt range: 0 ~ -25° or 0 ~ -120°
• Available total arm maximum loads and corresponding gas spring loads: 1000N (2.5–6.5 kg), 1500N (6–11.5 kg), 2000N (11–16.5 kg)
• Concealed cabling: Yes
• Color: Medical White
• Material: Aluminum alloy; die-cast aluminum core for strength
• Net weight: 4 kg
• Typical applications: Anesthesia machines, patient monitors, screens; suitable for hospital wards, outpatient rooms, emergency departments, diagnostic areas, and mobile clinical workflows
