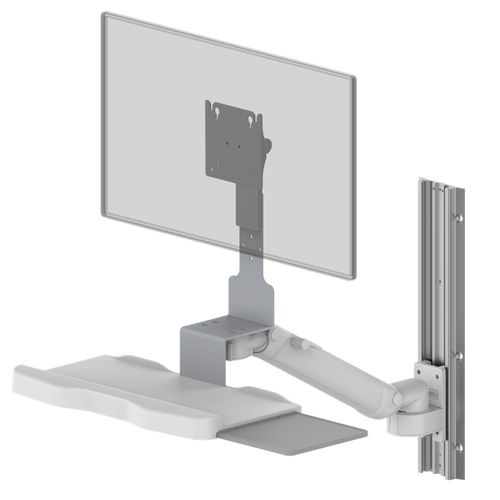

Articulated support arm WM800 series

height-adjustabletiltingswivel

Product detailed information

• Height adjust method: Lock and release by single-click mechanism
• Height adjustment: 450 mm
• Total arm maximum load options: 1000 N (gas spring 2-5 kg), 1500 N (gas spring 5-8 kg), 2000 N (gas spring 8-12 kg)

Recommended accessories
Flangeless wiring channel with removable cover - Specification

• Material: Aluminum

Cable management duct – Suitable for WM800 arm - Specification

• Material: ABS
• Used with WM800 arm to provide cable management and a neat integrated appearance

Basic Information
Model: WM800-08525 / WM800-08524
Channel: Optional channel 482 mm / 320 mm
Arm length: 524 mm
Height adjust method: Lock and release by single-click mechanism
Height adjustment: 450 mm
Swivel range: ±90°
Tilt range: 0–200°
Total arm maximum load: 1000 N (gas spring 2-5 kg) / 1500 N (gas spring 5-8 kg) / 2000 N (gas spring 8-12 kg)
Supported screen size: up to 24 inch
Screen maximum weight: 10 kg
Keyboard maximum weight: 2 kg
Keyboard maximum size: 158 × 442 mm
Concealed cabling: Yes
Color: Medical White
Material: Aluminum alloy (die-cast aluminum core for strength)
Net weight: 7.5 kg
Typical applications: Anesthesia machine, patient monitor, display and mobile clinical workstation uses

Product Description
This CORITON product is designed as a mobile computer workstation and medical mounting arm for computer and workstation applications. It is intended for hospital wards, outpatient rooms, emergency departments, diagnostic areas, and mobile clinical workflows where stable device support, organized accessories and reliable repositioning are required. Suitable for OEM/ODM medical trolley and mounting projects that require practical installation, durable construction, and clean equipment integration.

Technical specifications

• Model: WM800-08525 / WM800-08524
• Series: WM800
• Channel options: 482 mm or 320 mm (optional)
• Arm length: 524 mm
• Height adjustment range: 450 mm
• Height adjust method: Lock and release by single-click mechanism
• Swivel range: ±90°
• Tilt range: 0–200°
• Total arm maximum load options: 1000 N (gas spring 2-5 kg), 1500 N (gas spring 5-8 kg), 2000 N (gas spring 8-12 kg)
• Supported screen size: up to 24 inch
• Screen maximum weight: 10 kg
• Keyboard maximum weight: 2 kg
• Keyboard maximum size: 158 × 442 mm
• Concealed cabling: Yes (supports cable management duct)
• Color: Medical White
• Material: Aluminum alloy (die-cast aluminum core)
• Net weight: 7.5 kg
• Applications: Anesthesia machines, patient monitors, displays and other clinical workstation uses
• Recommended accessories: Flangeless wiring channel (aluminum); Cable management duct (ABS) suitable for WM800 arm
