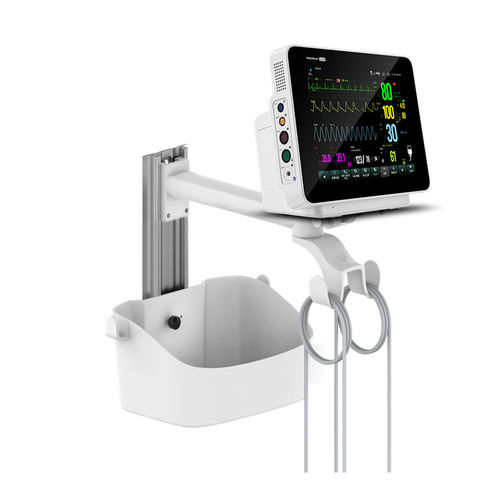

Tilting support arm WM001E-08425

positioningswivelfor monitors

Product overview
Mobile platform for bedside monitoring equipment. Paulite S10/S10A/S12/S12A monitor wall bracket - WM001E-08425 is a CORITON monitor cart designed for mobile installation of medical equipment and clinical workflow. The product is used to improve the efficiency of equipment movement between wards, outpatient clinics, emergency rooms and examination areas, allowing medical staff to more conveniently complete bedside viewing, recording, monitoring, communication and equipment management.

Typical application scenarios

• Ward bedside monitoring: suitable for equipment movement, bedside use, rapid positioning and daily operations in bedside monitoring scenarios in wards.
• ICU/emergency monitoring: suitable for equipment movement, bedside use, rapid positioning and daily operations in ICU/emergency monitoring scenarios.
• Equipment transfer and sharing: suitable for equipment movement, bedside use, rapid positioning and daily operations in equipment transfer and sharing scenarios.
• Outpatient examination support: suitable for equipment movement, bedside use, rapid positioning and daily operations in outpatient examination support scenarios.

Equipment adaptation and workflow value
Can be used as a monitor cart solution to integrate the main device, display terminal, accessories, power supply and cable management. The modular structure facilitates selection according to different departments, equipment brands and usage postures, helping hospitals reduce fixed workstation restrictions and allowing equipment to move with clinical workflow.

Design highlights

• Stable load bearing: provide reliable mobile support for the monitor.
• Quick positioning: casters with brakes make it easy to move and then secure.
• Viewing angle friendly: convenient for bedside viewing and communication with doctors and nurses.
• Modular adaptation: can be customized according to monitor brand, size and accessory requirements.

Recommended accessories

• Basket with Cord Wrap and Cable Hooks — Dimensions: 325*215*143mm; Material: Steel; Maximum load: 3kg.
• Basket — Dimension: 285*158*148mm; Material: Steel.
• Bin with cable hooks — Dimensions: 340*213*149mm; Material: ABS.
• Cable hook for AR105 support arm — material: ABS; available on request.
• Cable hook for AR102 support arm — material: ABS; available on request.

Basic information

• Model: WM001E-08425+A001-06592
• Channel: Standard Channel 320mm
• Arm length: 298mm
• Basket: 340*213*149mm, ABS, White
• Swivel range: +/- 90°
• Tilt range: 0° to -25° or 0° to -120°
• Total arm maximum load: 30 kg
• Tilt mechanism maximum load: 15 kg
• Concealed cabling: Yes
• Color: Medical White
• Material: Aluminum Alloy
• Application: Patient monitor, screen, ECG machine

Product Description
Page Code: KRT-P-4059
Mobile platform for bedside monitoring equipment. Paulite S10/S10A/S12/S12A monitor wall bracket-WM001E-08425 is designed for mobile installation of medical equipment to improve equipment movement efficiency between wards, outpatient clinics, emergency rooms and examination areas.

Technical specifications

• Model (table): WM001E-08425+A001-06592
• Channel: Standard Channel 320mm
• Arm length: 298mm
• Basket dimension/material: 340*213*149mm, ABS, White
• Swivel range: +/- 90°
• Tilt range: 0° to -25° or 0° to -120°
• Total arm maximum load: 30 kg
• Tilt mechanism maximum load: 15 kg
• Concealed cabling: Yes
• Color: Medical White
• Material: Aluminum Alloy
• Intended application: Patient monitor, screen, ECG machine
