Tilting support arm WM300-08459

positioningswivelfor monitors

Product description

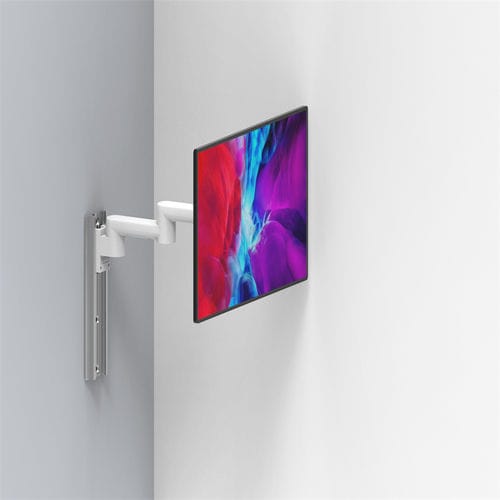

Wall-mounted rotating patient monitor arm WM300-08459 by CORITON is designed to support and position patient monitors, displays and lightweight medical devices at bedside. The arm provides flexible viewing angles and concealed cable routing to streamline clinical workflows in wards, ICUs and examination areas.

Typical application scenarios

• Ward bedside monitoring — fixed bedside mounting for continuous monitoring and routine use
• ICU and emergency monitoring — stable positioning for critical-care displays and quick access
• Outpatient and examination rooms — space-saving mounting for display and diagnostic equipment
• Telemetry and documentation stations — ergonomic viewing for recording and communication tasks

Equipment adaptation and workflow value
The WM300-08459 integrates the main device, display terminal, power and cable management in a compact wall-mounted solution. Its modular design enables adaptation to different monitor brands, sizes and departmental requirements, reducing the need for dedicated mobile workstations and enabling equipment to remain with the clinical workspace.

Adaptation direction

• Patient monitors
• Medical displays and modules
• Power and cable assemblies
• Accessory baskets and mounting fixtures

Design highlights

• Stable load capacity — engineered to support monitor loads up to the specified limit
• Quick positioning — smooth rotation and secure placement with locking options
• Optimized viewing angles — tilt and swivel ranges suited for bedside observation and staff communication
• Modular adaptability — configurable to match monitor brand, VESA size and accessory needs

Procurement keywords

• Monitor arm
• Wall-mounted monitor arm
• Patient monitor mount
• Medical monitor bracket
• Bedside monitor support
• WM300
• CORITON

Technical specifications

• Page Code: KRT-P-948
• Model: WM300-08459
• Wall channel: Standard channel 482 mm (longer or shorter optional)
• Arm length: 397 mm
• Basket: Optional
• Swivel range: ±90°
• Tilt range: 0 ~ -25° or 0 ~ -120°
• Total arm maximum load: 30 kg
• Tilt mechanism maximum load: 15 kg
• Concealed cabling: Yes
• Color: Medical white
• Material: Aluminum alloy
• Main processing method: Aluminum alloy die casting, aluminum alloy profile
• Application: Patient monitor, display, ECG machine
