Tilting support arm WM001E

swivelfor monitorsmedical

Product overview

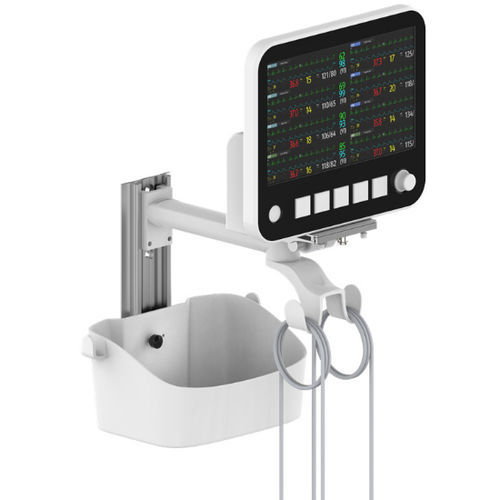

Monitor wall mount WM001E-101-01 is a CORITON monitor cart solution for mobile installation of medical devices. It enables safe bedside positioning, integrated cable management and flexible placement across wards, ICUs, emergency and outpatient areas to support clinical workflows.

Typical application scenarios

• Ward bedside monitoring: rapid repositioning for patient-focused monitoring and documentation.
• ICU/emergency monitoring: mobile support for critical-care monitors and quick locking at bedside.
• Equipment transfer and sharing: facilitates device movement and shared use between departments.
• Outpatient examination support: portable positioning for consultations and diagnostic procedures.

Equipment adaptation and workflow value
The WM001E-101-01 integrates the main device, display, accessories, power and cable routing. Its modular design allows configuration by department or device brand, reducing fixed-station constraints and enabling equipment to follow clinical processes.

Adaptation direction

• Patient monitor
• Display and module accessories
• Power and cable assemblies
• Storage baskets and mounting accessories

Design highlights

• Stable load bearing: reliable mobile support for monitors and peripherals.
• Quick positioning: lockable casters for easy movement and secure placement.
• Viewing-angle friendly: adjustable tilt and swivel for bedside viewing and staff communication.
• Modular adaptation: configurable for different monitor sizes, brands and accessory needs.

Recommended accessories

• Basket with cord wrap and cable hooks — Specification:
  Dimensions: 325×215×143 mm
  Material: Steel
  Maximum load: 3 kg
• Steel basket — Specification:
  Dimensions: 285×158×148 mm
  Material: Steel
• Bin with cable hooks — Specification:
  Dimensions: 340×213×149 mm
  Material: ABS

Basic information (table)
Model: WM001E-101-01
Upper rail: Standard rail 320 mm (longer or shorter optional)
Arm length: 298 mm
Basket: Optional (not included)
Swivel range: ±90°
Tilt range: 0° to -25° or 0° to -120°
Total arm maximum load: 30 kg
Tilt mechanism maximum load: 15 kg
Concealed cabling: Yes
Color: Medical White
Material: Aluminum alloy
Application: Patient monitor, display, ECG machine

Specifications

• Model: WM001E-101-01
• Upper rail: Standard 320 mm (longer or shorter optional)
• Arm length: 298 mm
• Swivel range: ±90°
• Tilt range: 0° to -25° or 0° to -120°
• Total arm maximum load: 30 kg
• Tilt mechanism maximum load: 15 kg
• Concealed cabling: Yes
• Color: Medical White
• Material: Aluminum alloy
• Typical applications: Patient monitor, display, ECG machine
