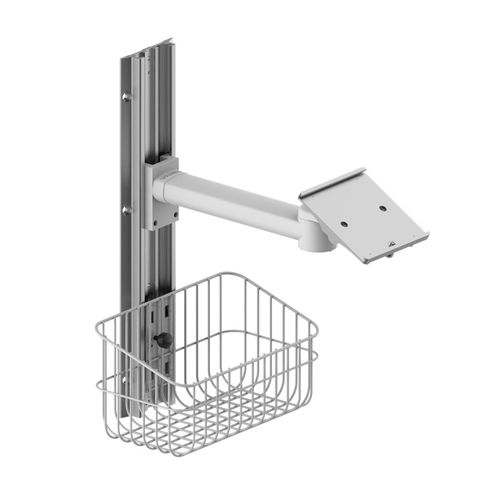

Tilting support arm WM001E

positioningswivelfor monitors

Product description
Page Code: KRT-P-1148
CORITON monitor wall mount WM001E is designed as a flexible solution for mobile installation and bedside positioning of medical monitoring equipment. It supports integration of the main device, display, power and cable management to follow clinical workflows between wards, outpatient areas, emergency and examination rooms.

Typical application scenarios

• Ward bedside monitoring: equipment movement, bedside use and rapid positioning for routine ward monitoring.
• ICU/emergency monitoring: mobile bedside support for ICU and emergency environments.
• Equipment transfer and sharing: facilitates safe transfer and shared use of monitors across departments.
• Outpatient examination support: supports display and monitoring in outpatient examination settings.

Equipment adaptation and workflow value
The WM001E can be configured as a monitor cart solution including display terminal, accessories, power modules and cable routing. Its modular design enables selection by department and device type, reducing fixed workstation constraints and allowing equipment to move with clinical workflow.

Adaptation direction

• Patient monitor
• Display and module accessories
• Power and cable assemblies
• Storage baskets and mounting accessories

Design highlights

• Stable load bearing: engineered to support monitor equipment in mobile use.
• Quick positioning: casters with brakes enable easy movement and secure placement.
• Viewing-angle friendly: adjustable tilt and swivel to facilitate bedside viewing and clinician interaction.
• Modular adaptation: customizable for monitor brand, size and accessory requirements.

Recommended accessories
Basket with Cord Wrap and Cable Hooks — Specification

• Dimensions: 325×215×143 mm
• Material: Steel
• Maximum load: 3 kg

Basket — Specification

• Dimensions: 285×158×148 mm
• Material: Steel

Bin with cable hooks — Specification

• Dimensions: 340×213×149 mm
• Material: ABS

Basic information
Model: WM001E
Channel: Standard channel 320 mm (longer or shorter optional)
Arm length: 298 mm
Basket: Optional
Swivel range: ±90°
Tilt range: 0 ~ -25° or 0 ~ -120°
Total arm maximum load: 30 kg
Tilt mechanism maximum load: 15 kg
Concealed cabling: Yes
Color: Medical White
Material: Aluminum Alloy
Application: Patient monitor, display, ECG machine

Procurement keywords

• Monitor cart
• Patient monitor trolley
• Medical equipment cart
• Bedside monitoring cart
• Mobile monitor stand
• WM001
• CORITON

Technical specifications

• Model: WM001E
• Channel: Standard channel 320 mm (longer or shorter optional)
• Arm length: 298 mm
• Swivel range: ±90°
• Tilt range: 0 ~ -25° or 0 ~ -120°
• Total arm maximum load: 30 kg
• Tilt mechanism maximum load: 15 kg
• Concealed cabling: Yes
• Color: Medical White
• Material: Aluminum Alloy
• Application: Patient monitor, display, ECG machine
