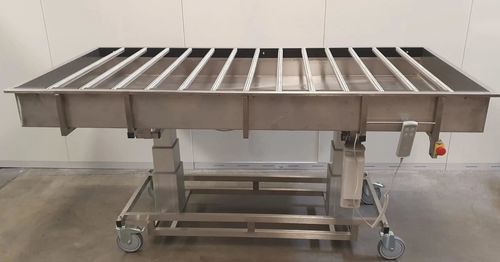

Height-adjustable mortuary washing unit

Overview
Height‑adjustable stainless steel table cart designed for body hygiene and ritual ablutions in healthcare, mortuary or care‑facility environments. The assembly combines a 200×80 cm 304 stainless steel tank, removable support bars, integrated drainage and a mobile 4‑wheel base with electric height and tilt adjustment to facilitate safe patient handling.

Main features

• 200 × 80 cm stainless steel (304) tank with 12 removable Ø 30 mm bars on 2 HDPE racks
• Tank thickness: 1.5 mm; drain hole Ø 70 mm with connection via stretchable Etiroflex‑type hose
• 304 stainless steel cart base with 4 × Ø 150 mm wheels (2 with brakes)
• Height adjustment range: 73–103 cm
• Tilt system (declivity/proclivity) on each side for secure positioning and rigidity
• 2 column jacks for synchronized height and tilt adjustment; control panel with emergency stop
• Battery with built‑in charger — approx. 30 up/down cycles when fully charged
• Load capacity: 300 kg

Option — 2500/L washing unit
Separate stainless steel (304) washing unit designed to recover wastewater from the cart. Unit dimensions: 185 × 85 × 85.5 cm (W × D × H); thickness 1.2 mm. Includes two sink basins (one horizontal 60 × 45 × 30 cm; one lateral 24 × 24 × 15 cm) with drain and siphon, a hot/cold mixer tap with elbow control, a cold water hand shower with 3 m hose, and 2 HDPE side protection strips.

Packaging
Delivered in individual cardboard boxes for protection and easy handling during transport.

Technical specifications

• Tank material: Stainless steel 304
• Tank dimensions: 200 × 80 cm
• Tank thickness: 1.5 mm
• Removable bars: 12 × Ø 30 mm on 2 HDPE racks
• Drain hole: Ø 70 mm, connection via stretchable Etiroflex‑type hose
• Cart base: 304 stainless steel
• Wheels: 4 × Ø 150 mm (2 with brakes)
• Height adjustment: 73 cm (min) – 103 cm (max)
• Load capacity: 300 kg
• Adjustment systems: tilt (declivity/proclivity) on each side; 2 column jacks; control with emergency stop
• Battery: built‑in charger; ~30 up/down cycles per full charge
• Option unit (2500/L): stainless steel 304, 185 × 85 × 85.5 cm, thickness 1.2 mm; 2 sinks (60×45×30 cm and 24×24×15 cm), drain and siphon, hot/cold mixer with elbow control, cold‑water hand shower with 3 m hose, 2 HDPE side protection strips
