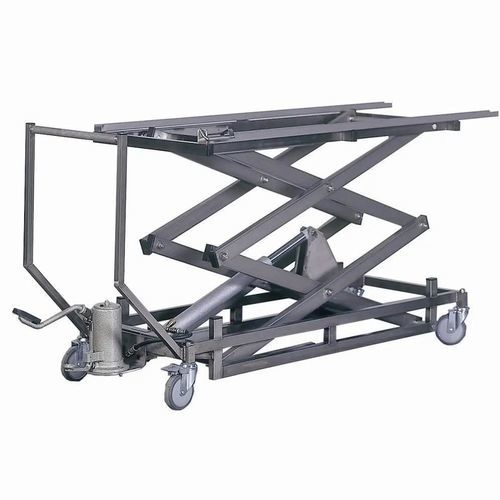

Transport stretcher trolley

patient transfermortuaryhydraulic

Description
All stainless steel 304 with brushed finish and a double-scissor lifting system providing rigidity. Elevation is performed by a hydraulic cylinder. Electric control mounted on the trolley to facilitate maneuvers. Rechargeable battery with acid electrolyte and integrated charger. Descent speed adjustable via a brake device. Optimized wheelbase: front-rear 145 cm and left-right 50 cm. Very quiet hydraulic cylinder. Upper and lower end stops. Locking safety on the cylinder. Four swivel wheels Ø12.5 cm, two with brakes, mounted on plates to support a load of 350 kg without wheel collapse. Two rails for wheeled stretchers with end stop and spring locking system to secure the stretcher on the trolley. Low ground clearance (6 cm). Optimal stability during handling of the deceased. DIMENSIONS: Width 65 cm x Length 220 cm x Variable height (min 32 cm / max 190 cm). Rated load 350 kg. Weight: 130 kg.

Packaging
Supplied as a single unit in an individual cardboard box.

Technical specifications

• Material: Stainless steel 304, brushed finish
• Lifting system: Double scissor
• Elevation: Hydraulic cylinder (very quiet)
• Control: Electric control mounted on the trolley
• Battery: Rechargeable battery with acid electrolyte
• Charger: Integrated charger
• Descent control: Brake to adjust descent speed
• Wheelbase: Front-rear 145 cm, left-right 50 cm
• Wheels: 4 swivel wheels Ø12.5 cm, 2 with brake, plate-mounted
• Rails: 2 rails for wheeled stretchers with end stop and spring locking system
• Ground clearance: 6 cm
• Dimensions: L 220 cm x W 65 cm x H min 32 cm / max 190 cm
• Rated load: 350 kg
• Weight: 130 kg
• Safety: Upper and lower end stops; locking safety on cylinder
