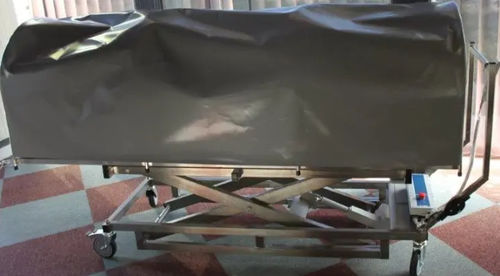

Transport stretcher trolley

recoverymortuaryelectric

Product description
All 304 stainless steel construction and fully electric operation. Designed for sensitive handling of human remains in medical and funeral environments, this transport lifting cart is suitable for body recovery from rooms, internal transport and dignified presentation. It is supplied with a flat stretcher Ref. 1560, four removable 304 stainless steel hoops (Ø 600 mm, height 300 mm) and a tunnel-shaped concealing cover in grey polyester canvas for easy cleaning and disinfection. The stretcher height is adjustable from 50 cm to 90 cm. A waterproof 24V battery provides approximately 40 cycles (one ascent + one descent) and a 230V charging cord recharges in about 3 hours. A charge indicator and emergency stop are fitted.

Packaging
Packaged in individual cardboard boxes.

Technical specifications

• Material: 304 stainless steel (cart, hoops)
• Stretcher: flat stretcher Ref. 1560
• Hoops: 4 removable 304 stainless steel hoops, Ø 600 mm, height 300 mm
• Concealing cover: tunnel-shaped tarpaulin with 2 closed ends, grey polyester canvas, easy to clean and disinfect
• Height adjustment (stretcher): 50 cm – 90 cm
• Battery: waterproof 24V battery; ~40 cycles (1 ascent + 1 descent)
• Charging: 230V cord; recharge time approx. 3 hours
• Indicators / Safety: charge capacity indicator, emergency stop, high and low limit switches, safety lock on jack
• Mobility: 4 × 12.5 cm swivel wheels (2 with brakes)
• Wheelbase (optimized): front–rear 145 cm; left–right 50 cm
• Ground clearance: 6 cm
• Stretcher locking: end-stop and spring-loaded locking system
• Lifting system: single-brace (sturdy and rigid)
• Dimensions: Width 62 cm × Length 206 cm × Height variable 50–90 cm
• Load capacity: 200 kg
• Weight: 55 kg (with stretcher and cover)
