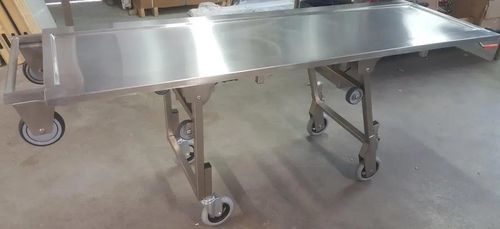

Transfer mortuary trolley 4400 series

medicalmanualstainless steel

Description
Stretcher for a standard or obese single-body refrigerated compartment Ref. 4400/60 and for a two-body compartment Ref. 4400/50. Full stainless steel 304 construction using 1.5 mm tubing for high structural strength. Reinforced and foldable design. The stretcher bed is curved (20 mm) to facilitate liquid retention. Equipped with two pulling handles (one on each side) and two maneuvering handles to release the two removable wheeled legs. The two leg assemblies fold via gas struts. Four 15 cm wheels (2 fixed, 2 swivel) ensure mobility. Includes two quick-release straps to secure the body during transfers. Supplied with two brakes to lock the stretcher opposite the pulling handles. Optional: sophisticated wheel locking system.

Dimensions
Width 60 cm (1 body) – 50 cm (2 bodies) x Height min 23 cm / max 73 cm x Length 203 cm.

Packaging
Sold individually in a single cardboard box.

Option
Ref. 4400/BS: sophisticated locking system for stretcher wheels.

Characteristics / technical specifications

• Brand: EIHF Isofroid
• Material: stainless steel 304
• Tubing: 1.5 mm
• Construction: reinforced and foldable
• Stretcher bed: curved 20 mm (liquid retention)
• Handles: 2 pulling handles (one each side) + 2 maneuvering handles for release
• Leg assemblies: 2 foldable leg assemblies with gas struts
• Wheels: 4 wheels 15 cm (2 fixed, 2 swivel)
• Straps: 2 quick-release straps
• Brakes: 2 brakes included (lock opposite pulling handles)
• Load capacity: 220 kg
• Weight: 40 kg
• Dimensions (L x W x H): 203 cm x 60 cm (1 body) / 50 cm (2 bodies) x Height min 23 cm / max 73 cm
• Packaging: single unit in individual cardboard box
• Options: Ref. 4400/BS sophisticated wheel locking
