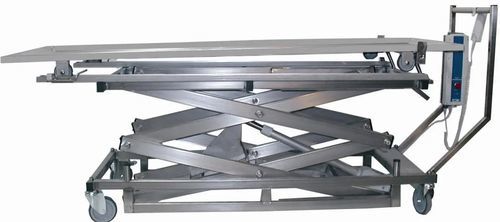

Transport stretcher trolley

patient transfermortuaryelectric

Description
Fully stainless steel construction (AISI 304) with brushed finish. Sealed 24V battery (not resistant to high-pressure water jets) providing long autonomy (approx. 100 up/down cycles). Recharge via a 230V mains cable (approx. 3 hours). Battery charge level indicator, emergency stop and remote control. Optimized wheelbase: front–rear 145 cm and left–right 50 cm. Very quiet electromechanical actuator. Lift range: min 32 cm – max 182 cm. High and low end-stops and locking safety on the actuator. Four swivel castors Ø 12.5 cm, two with brake. Two rails for wheeled stretchers with end-stop and spring locking system to secure the stretcher on the trolley.

Options

• Coffin roller frame ref. 2310, fits in addition to the rails on the trolley: 4 PVC rollers Ø 5 cm (allows handling coffins or ski-type stretchers).
• Coffin roller for vehicle compartment ref. 2311 (5 PVC rollers Ø 5 cm) for handling the coffin inside the body compartment.
• Wall-mounted battery charger ref. 2350/O (option). Battery ref. 2350/B included depending on configuration.

Packaging
Supplied as a single unit in an individual cardboard carton.

Characteristics / technical specifications

• Materials: fully AISI 304 stainless steel, brushed finish.
• Battery: sealed 24V (not resistant to high-pressure water jets).
• Battery autonomy: approx. 100 up/down cycles.
• Recharge: 230V cable, recharge time approx. 3 hours.
• Indicator: battery charge level indicator.
• Safety: emergency stop, high and low end-stops, locking safety on actuator.
• Control: remote control.
• Wheelbase: front–rear 145 cm, left–right 50 cm.
• Lifting system: very quiet electromechanical actuator, double scissor mechanism for strength and rigidity.
• Lift height: min 32 cm – max 182 cm.
• Ground clearance: 6 cm.
• Wheels: 4 swivel castors Ø 12.5 cm, 2 with brake.
• Rails: 2 rails for wheeled stretchers with end-stop and spring locking system.
• Dimensions: L 160 cm x W 61 cm x H 75 cm.
• Permissible load: 220 kg (at 50 cm height).
• Weight: 80 kg.
• Available versions: tilting version (ref. 2351), lateral loading version (ref. 2350/L).
• Available options: coffin roller frame ref. 2310, coffin roller for vehicle compartment ref. 2311, wall charger ref. 2350/O, battery ref. 2350/B.
