Transport stretcher trolley

patient transfermortuaryhydraulic

Description

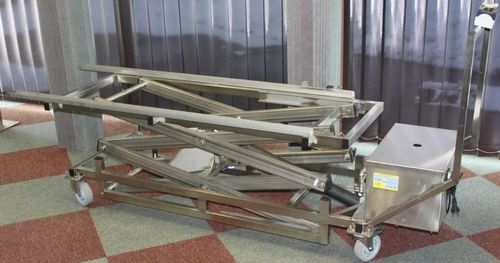

Stainless steel 304 brushed finish trolley with a double-scissor lift system providing rigidity. Elevation is driven by a very quiet hydraulic cylinder. Electric control is fixed to the trolley to facilitate maneuvers. The unit includes a rechargeable acid‑solution battery with integrated charger and a descent speed regulator (brake). Optimized wheelbase: front–rear 145 cm, left–right 50 cm. High and low end stops and a locking safety on the cylinder are fitted. Four swivel wheels Ø 12.5 cm, two with brakes, mounted on plates to support 350 kg without wheel deflection. Two rails for wheeled stretchers with end-stop and spring locking system to secure the stretcher. Low ground clearance (6 cm) ensures stability during handling of deceased. DIMENSIONS: Width 65 cm x Length 220 cm x variable height (min 32 cm max 190 cm) — Load capacity 350 kg — Weight: 130 kg.

Packaging :
Individual unit in cardboard.

Technical characteristics / specifications

• Material: stainless steel 304, brushed finish
• Lift system: double scissor
• Elevation: hydraulic cylinder (very quiet)
• Control: electric control fixed to the trolley
• Power: rechargeable acid‑solution battery
• Charger: integrated charger
• Safety: high and low end stops; cylinder locking safety
• Braking: descent speed regulator (brake)
• Wheels: 4 swivel wheels Ø 12.5 cm, 2 with brake, mounted on plates
• Load capacity: 350 kg
• Rails: 2 rails for wheeled stretchers with end-stop and spring locking system
• Wheelbase: front–rear 145 cm; left–right 50 cm
• Ground clearance: 6 cm
• Dimensions: W 65 cm x L 220 cm x variable height 32–190 cm
• Weight: 130 kg
• Stability: designed for stable handling of deceased
