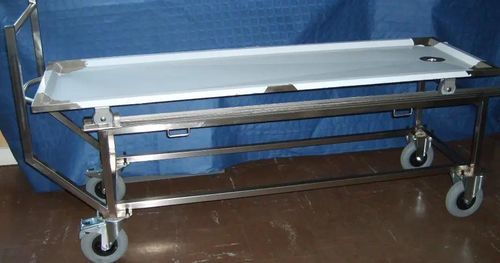

Transport stretcher trolley

manualbariatricwith strap

Description
Manual stainless-steel (AISI 304) transport trolley for bariatric patients. Four 20 cm swivel wheels mounted on plates, two with brakes, guided by a handle. A concealment tarpaulin is secured on hoops and reinforced on a 304L stainless-steel frame. A curved stretcher Réf. 1571 is supplied with two straps and a concealment lid.

The white PVC bellows is washable, disinfectable and foldable. Two rails for wheeled stretchers fit precisely into the trolley rails to enable effortless handling. Fitted with an end stop and a spring locking system to secure the stretcher to the trolley.

Packaging
Single unit in individual cardboard packing.

Available options

• Réf. 2420/L: Smooth pneumatic wheels Ø 26 cm.
• Réf. 2420/P: Treaded all-terrain wheels (asphalt, gravel, soil, rough concrete).

Features / technical specifications

• Material: Stainless steel 304 (frame reinforced in 304L).
• Dimensions: Width 75 cm x Length 200 cm x Height (with concealment) 120 cm.
• Permitted load: 350 kg.
• Weight: 55 kg (with stretcher and concealment).
• Wheels: 4 swivel wheels 20 cm (2 wheels with brake). Wheel options: smooth pneumatic Ø26 cm or treaded all-terrain wheels.
• Stretcher: Curved stretcher Réf. 1571 with 2 straps and concealment lid.
• Bellows: White PVC fabric, washable and disinfectable, foldable.
• Handling system: Embeddable rails for wheeled stretchers, end stop and spring locking system.
