Transfer trolley

transportliftingconcealment

Description

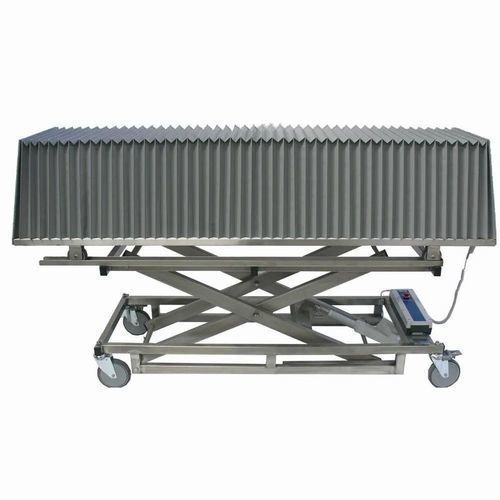

All stainless steel 304 and electrically powered, with a single scissor lift, this trolley is specifically designed to recover the body from the room and for transport or presentation of the body. It is supplied with a curved stretcher Ref. 1561 and a concealment cover consisting of a foldable grey polyester bellows, washable and easily disinfectable. Its adjustable height (50 cm to 90 cm) allows adapting the stretcher height. The sealed 24 V battery provides approximately 40 cycles (1 up + 1 down) and a 230 V mains lead enables recharging (about 3 hours). The trolley features a charge-level indicator and an emergency stop.

Packaging
Sold individually in a single cardboard carton.

Technical characteristics / specifications

• Material: stainless steel 304
• Lifting system: single scissor (scissor)
• Associated stretcher: curved stretcher Ref. 1561 (included)
• Concealment cover: foldable grey polyester bellows, washable and disinfectable
• Adjustable height: 50 cm to 90 cm
• Permitted load: 200 kg
• Weight (with stretcher and concealment): 55 kg
• Battery: sealed 24 V
• Battery autonomy: approx. 40 cycles (1 up + 1 down)
• Recharge: 230 V mains lead, recharge time approx. 3 hours
• Indicator: charge-level indicator
• Safety: emergency stop; top and bottom limit switches; locking safety on jack
• Control: wired control independent from the trolley
• Manoeuvrability: optimized wheelbase front–rear 145 cm; left–right 50 cm
• Ground clearance: 6 cm
• Wheels: 4 swivel wheels Ø 12.5 cm, 2 with brake
• Rails: 2 rails for wheeled stretchers with end stop and spring locking system
