Drug refrigerator LABOR 2T 280 ECT-F PLUS

for vaccinesmedicalsplit

Description

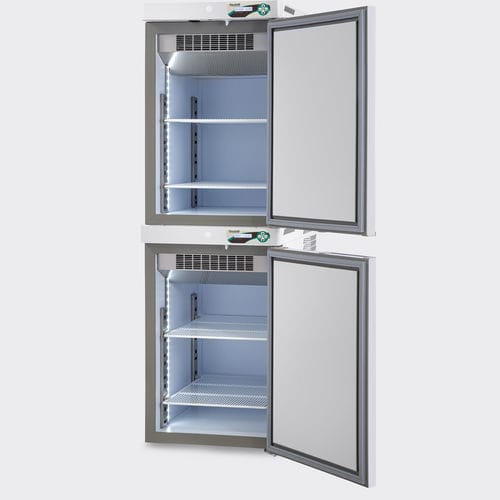

Professional combined medical refrigerator-freezer with two compartments and dual compressors, equipped with two solid doors and a customizable interior. Designed for storage of medicines, vaccines and other temperature-sensitive products at positive temperatures and down to -20°C.

Main features

• Temperature ranges: +2/+15°C | -10/-20°C
• Rated capacity per compartment: 140 + 140 L (model 280 L)
• Total gross capacity: 306 L (10.81 cu ft)
• 2 independent compressors, 2 solid doors with automatic closing and 90° door stay
• Full-height internal LED lighting
• Controller type: ECT-F PLUS

Structure and refrigeration
Internal dimensions (each compartment): 44 x 51.6 x 56 cm. Rated capacity: 140 + 140 L (4.94 + 4.94 cu ft). Net capacity: 128 + 128 L (4.53 + 4.53 cu ft). Insulation: high-density injected polyurethane (43 kg/m3), CFC-free with eco-friendly water-based injection. Insulation thickness: 40 mm. Construction: single-shell white coated steel internal/external with certified antibacterial treatment, or internal 18/10 AISI 304 stainless steel; rounded corners and sump base. Mobility: 4 unidirectional rollers included and two front adjustable feet for stability. Internal lighting: full-height LED. Refrigeration type: professional forced-air ventilation. Defrost type: adaptive automatic with condensate evaporation.

ECT-F PLUS controller

• Temperature display and setpoint with 0.1°C resolution and accuracy +/- 0.3°C
• 16-character backlit alphanumeric LCD, configurable in 5 languages; keypad with 4 membrane keys
• Backup battery for power-failure alarms up to 48 hours; alarm visibility even without mains power
• Min/max temperature memory and event logging (16-event log)
• Clean contact on electronic board for remote alarm integration
• Configurable display modes and password protection

Technical data
Refrigerant type: R290. Consumption: 4.6 kWh/24h. Power absorbed / Current: kW 0.14 + 0.5 / A 0.9 + 2.3. Inrush current: A 2.5 + 6. Noise level: <45 dBA. Heat emission (EN 12900): W 191. Max number of shelves: 3 + 3. Shelf dimensions: 40 x 47 cm. Max number of drawers: 5 + 3. Internal drawer with dividers (LxPxH) (n.slots): 10 x 45 x 7.5 cm (3). Internal drawer without dividers (LxPxH): 33 x 45 x 7.5 cm.

Accessories available on request

• Lock with key
• External clean contacts for ECT-F PLUS
• Anti-freeze safety
• DIN 13277 compliance (for ECT-F PLUS)
• Shelf for models 100-140-280-300
• Sliding aluminum drawer with dividers for models 100-140-280
• Sliding aluminum drawer without dividers for models 100-140-280
• Plexiglass front riser for drawer
• Wheel kit (2 with brake) for models 100-140-280
• Cable pass-through hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with clean contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packaging

Features / Technical specifications

• Model: LABOR 2T 280 ECT-F PLUS
• Application: storage of medicines, vaccines and temperature-sensitive materials
• Double compartment and dual compressors for separate temperature zones
• Solid doors with integrated handle and magnetic gasket on four sides
• Intelligent automatic defrost with condensate evaporation
• Local display and alarms with event memory and clean contact for remote alarm integration
