Vaccine freezer SUPERARTIC 2T 700 TOUCH

for healthcare facilitiesmedicalfor pharmacies

Overview

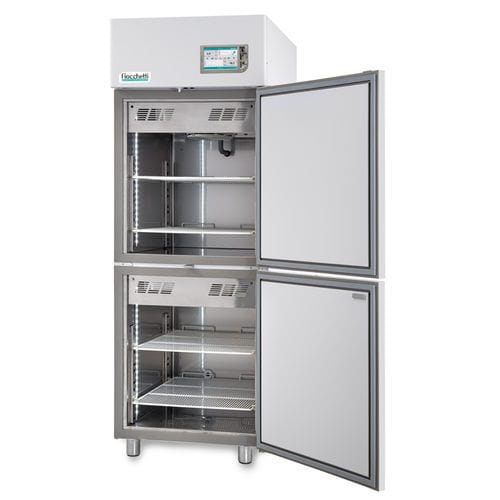

Large-capacity combined refrigerator + freezer (model SUPERARTIC 2T 700 TOUCH, code SUT0702) with two independent compartments and dual cooling units. Designed for controlled storage of pharmaceuticals, vaccines and other temperature-sensitive healthcare materials. 7″ full-touch controller with data recording and network connectivity.

Key features

• Dual compartment: refrigerator (+2/+15°C) and freezer (-20/-40°C) with two independent cooling units
• 7″ FULL TOUCH CONTROLLER with 0.1°C resolution and ±0.3°C accuracy; integrated data logging and alarm management
• Adaptive automatic defrost with condensate collection and automatic evaporation to prevent ice formation
• Two solid doors with integrated handles, magnetic gasket sealing, automatic lock and reversible opening
• Interior configurable with shelves, drawers or baskets; full-height LED lighting with adjustable brightness
• Night & Day function to reduce power consumption during off-peak periods

Structure and refrigeration

• Insulation: injected PUF 43 kg/m3, thickness 60 mm, water-based injection, CFC-free
• Structure: monocoque; exterior/interior in plasticized atoxic white steel with antibacterial film, or inner 18/10 AISI 304 stainless steel
• External dimensions (WxDxH): 72 x 84 x 203 cm — Total indicated capacity: 593 L
• Inner dimensions per compartment: 60 x 68 x 70 cm / 60 x 68 x 74 cm — Nominal capacity 350+350 L; net capacity 260+230 L
• Feet: 4 height-adjustable feet included — Interior rounded corners for easy cleaning
• Refrigeration: professional ventilated system; defrost: automatic adaptive

Controller and connectivity

• Microprocessor controller with 7″ full-touch interface, multi-trace real-time graph and editable set-points
• Data ports: SD card slot (history), USB port (download/update), SIM slot for GSM module (optional)
• Network: integrated web server for LAN (RJ45) and MODBUS TCP/IP integration
• Alarms & safety: acoustic and visual alarms (silenceable), automatic recording, dry contact for remote alarm, anti-freeze and overheat protection

Technical data
Refrigerant: R290
Energy consumption: 10.5 kWh/24h
Power absorption: kW 0.17 + 1.3 / Amp 1 + 6 — Inrush current: Amp 3 + 7
Noise level: <60 dBA — Heat rejection (EN 12900): 438 W
Max shelves: 3+3 — Wire shelf dims: 56 x 65 cm — Max drawers: 5+3

Accessories and options

• Electronic lock and mechanical lock options
• Power-failure alarm kit, DMLP TOUCH digital monitor, PT100 probe
• GSM and Wi‑Fi modules, external terminal board, IoT gateway
• Local/cloud monitoring systems (Fiocchetti LAN SUPERVISOR), wheels kit for model 700

Applications & compliance
Suitable for laboratory, pharmaceutical, healthcare and industrial research storage. Model: SUPERARTIC 2T 700 TOUCH — Brand: Fiocchetti — Code: SUT0702.
