Laboratory refrigerator LABOR 2T 700 TOUCH

for sample storagefor vaccinesfor drugs

Overview

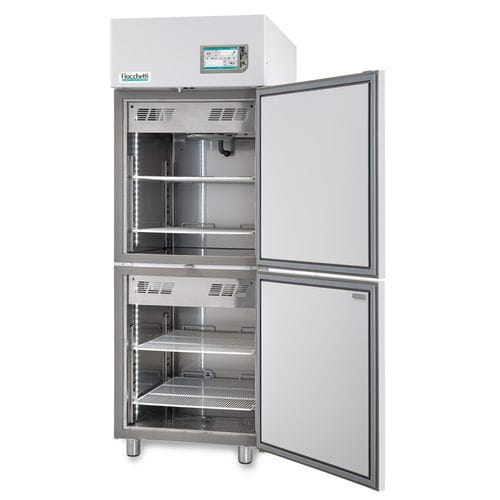

Large combined refrigerator + freezer designed for storage of drugs, vaccines and thermosensitive materials. Unit features two independent chambers with double cooling units, two solid doors and a 7" full touch screen for chamber management and data recording. Configurable internal storage adapts to laboratory and clinical workflows.

Key features

• Double compartment with two independent cooling units and two solid doors
• 7" full touch screen controller (TOUCH) for both chambers with data logging
• Integrated handle, magnetic gasket on four sides, automatic lock and return spring; 90° door stop; reversible opening
• Adaptive automatic defrost and automatic condensate evaporation to prevent ice formation and downtime
• Internal options: shelves, drawers or baskets; full-length adjustable LED interior lighting
• Professional forced-air refrigeration; R290 refrigerant

Controller and connectivity
Microprocessor controller with 7" FULL TOUCH SCREEN, 0.1°C resolution and ±0.3°C accuracy. Standard functions: temperature and alarm recording, multi-trace real-time graph, editable set-points and alarm limits, energy consumption readout. Ports and slots: SD card (data history), USB (download/update), SIM slot (GSM module optional). Integrated Web Server (LAN RJ45) and MODBUS TCP/IP; dry contact for remote alarm. Optional accessories: electronic lock, power-failure alarm, DMLP TOUCH independent recorder, GSM/Wi‑Fi modules, external terminal board, local and cloud monitoring systems.

Doors and safety

• Two solid doors with integrated handle
• Magnetic gasket sealing on all four sides
• Automatic lock and return spring, door stop at 90°
• Reversible opening side; acoustic and visual alarms (optional)

Technical specifications

• Code: LAD0702
• Model: LABOR 2T 700 TOUCH
• Temperature range: +2/+15°C (refrigerator) | -10/-30°C (freezer)
• Total capacity: 593 lt; nominal: 350+350 lt; net: 260+265 lt
• External dimensions (WxDxH): 72 x 84 x 203 cm
• Inner dimensions (per chamber): 60 x 68 x 70 cm / 60 x 68 x 74 cm
• Insulation: injected PUF 43 kg/m3, 60 mm thickness, CFC-free
• Power consumption: 5 kWh/24h; refrigerant: R290
• Power absorption / current: kW 0.17 + 0.32 / Amp 1 + 2.3; inrush: Amp 3 + 5
• Noise level: <50 dBA
• Max shelving: 3 + 3; drawers up to 5 + 3 (configurations vary)
• Brand: Fiocchetti
