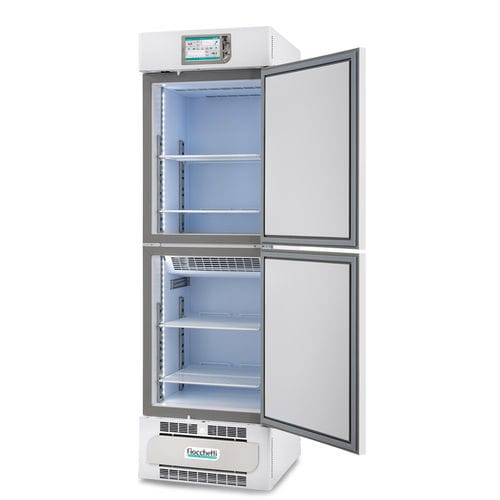

Drug refrigerator LABOR 2T 400 TOUCH

laboratoryfor vaccinesmedical

Overview
Combined refrigerator + freezer for medical use with two independent chambers and cooling units (nominal 200+200 L, total 400 L). 7" full touch controller monitors both compartments, records data and supports connectivity options. Designed for storage of drugs, vaccines and thermosensitive material at positive and subzero temperatures down to -25°C.

Main features

• Double compartment with two independent refrigeration units for simultaneous storage at different temperatures
• Two solid doors with integrated handles, magnetic gasket on all sides, automatic lock with return spring and 90° door stop; reversible opening
• Configurable interior: shelves, drawers or baskets to optimise storage and workflow
• Intelligent adaptive defrost with automatic condensate vaporisation to prevent ice formation
• Professional forced‑air (ventilated) refrigeration and full‑height adjustable LED lighting
• Mobility and installation: 4 unidirectional rollers and 2 front feet for stability

Key data

• Temperature ranges: +2/+15°C (refrigerator) | -10/-25°C (freezer)
• Usable / nominal capacity: nominal 200+200 L; usable net approx. 170+160 L; commercial listed total 358 L
• External dimensions (WxDxH): 60 x 64.5 x 202 cm
• Inner dimensions (each chamber): 50 x 48.5 x 68.5 / 50 x 48.5 x 73 cm
• Controller: 7" full touch screen, 0.1°C resolution, ±0.3°C accuracy

Structure and refrigeration

• Monocoque structure with atoxic white plastified steel interior/exterior with antibacterial film or optional AISI 304 18/10 stainless steel inner lining
• High‑density injected PUF insulation (43 kg/m3); thickness 70 mm (back) / 50 mm (sides)
• Rounded inner corners and leak‑resistant tub bottom; removable internal components for cleaning and sterilisation
• Ventilated professional refrigeration; adaptive automatic defrost with condensate vaporisation
• Energy saving Night & Day function

7" FULL TOUCH SCREEN ELECTRONIC CONTROLLER

• Microprocessor controller with 7" full touch interface; temperature/alarm recording and multi‑trace real‑time graph
• Display of current temperature, editable set‑point and alarm limits; 0.1°C resolution, ±0.3°C accuracy
• SD card slot for history, USB port for download/update, SIM slot for GSM module (optional)
• Integrated Web Server for LAN (RJ45) and MODBUS TCP/IP connectivity
• Safety: anti‑freeze and anti‑overheat devices; dry contact for remote alarm; acoustic and visual alarms (silenceable) with automatic logging
• Optional accessories: electronic lock, power‑failure alarm kit, DMLP TOUCH independent recorder, GSM/Wi‑Fi modules, external terminal board, local/cloud monitoring systems

REFRIGERATOR TECHNICAL DATA

• Refrigerant: R290
• Energy consumption: 4 kWh/24h
• Power absorption / current: kW 0.17+0.32 / Amp 1+2.3
• Inrush current: Amp 3+5
• Noise level: <50 dBA
• Heat rejection (EN 12900): 166 W
• Max shelves/drawers: shelves 3+3 (46x45 cm); drawers up to 5+3 with specified internal dimensions

Accessories available on request

• Gateway IOT; Fiocchetti LAN SUPERVISOR local monitoring
• Power failure alarm kit; external terminal board for ECT‑F TOUCH; digital electric key
• DMLP TOUCH digital monitor; GSM and Wi‑Fi modules; 4‑20 mA converter
• Shelves, stainless steel and perforated shelves; pull‑out aluminium or stainless drawers; lockable narcotics drawer; access ports (mm 35 / 15); humidity sensor; PT100 probe
• Power supply options: 220V/1~/60Hz or 115V/1~/60Hz; voltage stabiliser; wooden crate packaging

Characteristics / Technical specifications

• Model code: LAD0402
• Commercial denomination: LABOR 2T 400 TOUCH
• Brand: Fiocchetti
• Temperature ranges: +2/+15°C and -10/-25°C
• Total nominal capacity: 400 L (200+200)
• Net usable capacity: approx. 170+160 L
• External dim. (WxDxH): 60 x 64.5 x 202 cm
• Controller: 7" full touch screen; resolution 0.1°C; accuracy ±0.3°C
• Refrigerant: R290; Energy consumption: 4 kWh/24h; Noise <50 dBA
