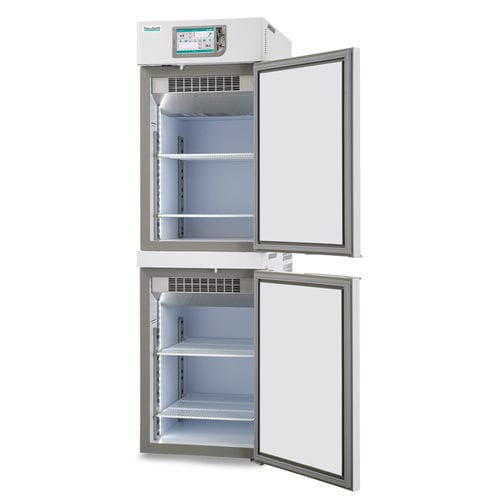

Laboratory refrigerator LABOR 2T 280 TOUCH

medicalhospitalfor vaccines

Product overview
Combined refrigerator+freezer 280 L (140+140) with independent double cooling units and two solid doors, designed for storage of drugs, vaccines and thermosensitive materials at positive temperatures and down to -20°C. 7" touch screen controls both chambers and records data.

Key features

• Dual compartment design with independent double cooling units for separate temperature control
• Two solid doors with integrated handle, magnetic gasket on four sides, automatic lock, return spring, 90° door stop and reversible opening
• Configurable interior: adjustable shelves, drawers or baskets to optimize storage and handling of vials and packs
• Intelligent adaptive defrost with automatic condensate evaporation to prevent ice and downtime
• Full-height adjustable LED lighting and mobility with 4 unidirectional rollers and 2 front feet
• Energy saving Night & Day function

Structure and refrigeration

• Inner dimensions (each chamber): 44 x 51.6 x 56 cm
• Nominal capacity: 140+140 L (total 280 L), net capacity: 128+128 L (displayed total 306 L on product sheet)
• Insulation: high-density injected PUF 43 kg/m3, water‑based injection, CFC-free; thickness 40 mm
• Structure: monocoque body; white atoxic plastified steel with antibacterial film or inner 18/10 AISI 304 stainless steel; rounded inner corners
• Refrigeration: professional ventilated system; refrigerant R290; adaptive automatic defrost

Controller
7" FULL TOUCH SCREEN microprocessor controller with 0.1°C resolution and ±0.3°C accuracy. Standard functions: temperature and alarm recording, multi-trace real-time graph, simultaneous display of current temperature and editable set‑point, editable alarm limits, energy consumption display and optional battery status. Interfaces: 3-slot SD card, USB port, SIM slot (GSM optional); integrated web server for LAN (RJ45) and MODBUS TCP/IP; dry contact for remote alarm. Acoustic and visual alarms are silenceable and automatically recorded.

Optional / additional accessories

• Electronic lock
• Acoustic and visual power‑failure alarm
• DMLP TOUCH module for independent temperature recording
• GSM and Wi‑Fi modules
• External terminal board
• Local and cloud monitoring systems; IoT gateway

Technical data

• Refrigerant: R290
• Energy consumption: 4.6 kWh/24h
• Power absorption/current: kW 0.14+1.18 / A 0.9+1.2
• Inrush current: A 2.5+3.5
• Noise level: <45 dBA
• Heat rejection (EN 12900): 191 W
• Max shelves/drawers: shelves 3+3 (40 x 47 cm); drawers max 5+3; drawers internal dims with dividers: 10 x 45 x 7.5 cm (3); without dividers: 33 x 45 x 7.5 cm

Application & use
Designed for hospitals, laboratories, pharmacies and medical facilities for storage of drugs, vaccines and thermosensitive samples. Available in different configurations to support monitoring and regulatory compliance.

Specifications

• Model: LABOR 2T 280 TOUCH (Code LAD0282)
• Overall nominal capacity: 306 L (nominal 140+140 L)
• Temperature ranges: +2/+15°C (refrigerator) | -10/-20°C (freezer)
• External dimensions (WxDxH): 52 x 66.5 x 177.5 cm
• Inner dimensions (each chamber): 44 x 51.6 x 56 cm
• Insulation: PUF 43 kg/m3, 40 mm
• Controller: 7" full touch; connectivity SD/USB/SIM; LAN RJ45; MODBUS TCP/IP
