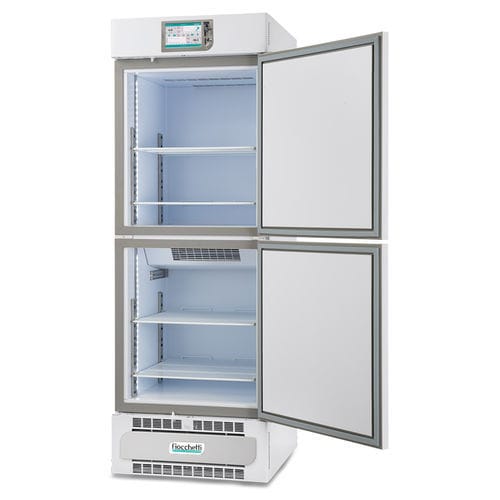

Laboratory refrigerator LABOR 2T 500 TOUCH

for drugsfor vaccinesfor sample storage

Overview
Combined refrigerator-freezer 500 L (250+250) with two independent cooling units and two solid doors, designed for storage of pharmaceuticals, vaccines and thermosensitive materials at positive temperatures and down to -25°C. 7" touch screen manages both chambers and records temperature data.

Key features

• Two independent compartments with separate cooling units to maintain different temperature zones
• Two solid doors with integrated handle, full-perimeter magnetic gasket, automatic lock, return spring and reversible opening with 90° door stop
• 7" full touch screen controller managing both chambers and data logging
• Adaptive automatic defrost with condensate vaporization to prevent ice formation
• Flexible interior configuration: shelves, drawers or baskets; full-height adjustable LED lighting
• Night & Day function for reduced power consumption

Controller and monitoring

• Microprocessor controller with 7" full touch interface, 0.1°C resolution and ±0.3°C accuracy
• Standard: temperature and alarm recording, multi-trace real-time graph, editable set-point and alarm limits
• Slots: SD card (history), USB port (download/update), SIM slot (GSM optional); integrated Web Server for LAN (RJ45) and MODBUS TCP/IP
• Safety: anti-freeze and anti-overheat devices, dry contact for remote alarm, acoustic and visual alarms (silenceable) with automatic recording
• Optional accessories: electronic lock, power-failure alarm kit, DMLP TOUCH data logger, GSM/Wi‑Fi modules, external terminal board, local and cloud monitoring systems

Structure and refrigeration

• Monocoque structure in white plastified steel with antibacterial film; rounded inner corners
• High-density injected PUF insulation (43 kg/m3), thickness 75 mm back / 60 mm sides
• Professional forced-air refrigeration using R290; automatic adaptive defrost with condensate vaporization
• Mobility/stability: 4 unidirectional rollers and 2 front feet

Accessories available on request

• IoT gateway
• FIOCCHETTI LAN SUPERVISOR local monitoring
• Power-failure alarm kit
• External terminal board for ECT-F TOUCH
• Digital electric key (electronic lock)
• DMLP TOUCH digital monitor
• Temperature product simulation, humidity sensor, PT100 probe
• GSM and Wi‑Fi modules, 4-20mA converter
• Shelves, aluminium pull-out drawers (with/without dividers), plexiglass fronts, stainless steel wire racks
• Lockable narcotics drawer, wheels kit, access ports, voltage stabiliser, wooden crate packaging

Technical specifications

• Brand: Fiocchetti
• Model: LABOR 2T 500 TOUCH
• Product code: LAD0502
• Capacity: 500 L total (250+250 L); displayed capacity 486 L
• Net capacity: 249 + 230 L
• Temperature ranges: +2/+15°C (positive) | -10/-25°C (negative)
• Controller resolution/accuracy: 0.1°C / ±0.3°C
• External dimensions (WxDxH): 72 x 74.5 x 208 cm
• Internal dimensions (each compartment): 60 x 58.8 x 70 / 60 x 58.8 x 74 cm
• Insulation: PUF 43 kg/m3, 75 mm back / 60 mm sides
• Refrigerant: R290
• Energy consumption: 4.5 kWh/24h
• Power absorption: 0.17 + 0.32 kW
• Noise level: <50 dBA
• Max shelves/drawers: up to 3+3 shelves and 5+3 drawers
