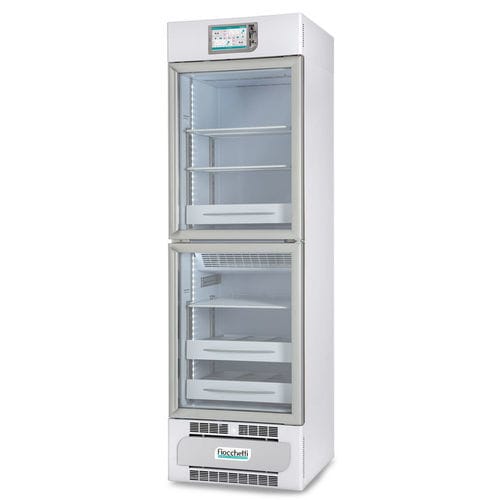

Pharmacy refrigerator VISION 2T 400 TOUCH

for drugsfor hospitalsfor vaccines

Overview
Combined refrigerator + freezer designed for storage of drugs and vaccines in two independently controlled compartments. Two tempered glass doors provide visibility of stored products. Central management via a 7" full-touch electronic controller with data recording and network connectivity (LAN/MODBUS).

Main summary
400 L total (200 + 200), independent double cooling units, touch controller with recording, 2 tempered glass doors, suitable for pharmacies, hospitals and laboratories.

Key features

• Double compartment (refrigerator + freezer) with independent double cooling unit
• 7" full-touch electronic controller (TOUCH) with data logging and multi-trace real-time graph
• Designed to meet requirements for pharmaceutical storage and vaccine management; compliant with international standards and pharmacopoeia where applicable
• Two tempered glass doors, anti-fog and low-emissivity glass with anodized aluminium profiles
• Full-length ergonomic handle; magnetic gasket on all four sides; automatic return latch and door stop at 90°; reversible opening side

Structure and refrigeration

• Inner dimensions (each compartment): 50 x 48.5 x 68.5 cm / 50 x 48.5 x 73 cm
• Nominal capacity: 200 + 200 L — total 400 L
• Net capacity: 170 + 160 L
• Insulation: high-density injected PUF (43 kg/m3), water-foam based injection, CFC-free
• Insulation thickness: 70 mm (back) / 50 mm (sides)
• Structure: monocoque body, white plasticized atoxic steel interior/exterior or optional inner 18/10 AISI 304 stainless steel; rounded inner corners
• Includes 4 unidirectional rollers and 2 front feet for handling and stability
• Interior lighting: full-height LED with adjustable brightness
• Refrigeration type: professional ventilated
• Defrost: automatic adaptive with condensate vaporization
• Energy consumption reduction function: Night & Day

Electronic controller (7" full touch)

• Microprocessor controller, 7" full-touch interface, resolution 0.1°C, accuracy ±0.3°C
• Standard temperature and alarm recording; multi-trace graph, current temperature and editable set-point, editable alarm limits
• Controller ports: SD card slot (data history), USB port (download/update), SIM slot for GSM module (optional)
• Connectivity: integrated Web Server for LAN (RJ45) and MODBUS TCP/IP
• Safety: anti-freeze and anti-overheating protections; dry contact for remote alarm
• Acoustic and visual alarms (silenceable) with automatic recording
• Optional accessories: electronic lock, power-failure alarm kit, DMLP TOUCH module, GSM/Wi‑Fi modules, external terminal board, local and cloud monitoring systems

Refrigerator technical data

• Temperature range: +2/+15 °C (refrigerator) | -10/-20 °C (freezer)
• Capacity (stated): 358 L usable / nominal 400 L (200+200)
• External dimensions (WxDxH): 60 x 66 x 202 cm
• Refrigerant: R290
• Energy consumption: 5 kWh/24h
• Power absorption / current: kW 0.17 + 0.32 / A 1 + 2.3
• Inrush current: A 3 + 5
• Noise level: <50 dBA
• Heat rejection (EN 12900): 208 W
• Shelves max nr.: 3 + 3 — dimensions 46 x 45 cm
• Drawers max nr.: 5 + 3 — inner drawers with dividers: 11.8 x 40 x 7.5 cm (3)
• Wire drawer inner dimensions: 43.5 x 40.5 x 6.2 cm

Accessories available on request

• Gateway IOT
• Local monitoring system FIOCCHETTI LAN SUPERVISOR
• Power failure alarm kit
• External terminal board for ECT-F TOUCH
• Digital electric key
• DMLP TOUCH digital monitor
• Temperature product simulation probe
• DIN 13277 conformity (for ECT-F TOUCH)
• GSM module, WI‑FI module
• 4-20 mA converter module
• Shelves and stainless steel shelves (models 170-200-250-400)
• Pull-out aluminum drawers with/without dividers, plexiglass front, stainless steel wire racks
• Lockable drawer for narcotics (model 700)
• Wheels kit (2 with brakes), access ports Ø35 mm / Ø15 mm
• PT100 probe, voltage stabiliser, wooden crate packaging

Characteristics / Technical specifications

• Product code: VST0402
• Model: VISION 2T 400 TOUCH
• Intended use: storage of drugs and vaccines at controlled different temperatures (two compartments)
• Controller: 7" FULL TOUCH with recording and LAN/MODBUS capability
• Cooling: independent double cooling units
• Doors: 2 tempered glass doors, anti-fog, low emissivity
• Insulation: PUF 43 kg/m3; thickness 70 mm (back) / 50 mm (sides)
• Refrigerant: R290
• Energy consumption: 5 kWh/24h
• Noise: <50 dBA
• External dimensions (WxDxH): 60 x 66 x 202 cm
• Nominal capacity: 200 + 200 L — Net capacity: 170 + 160 L
