Pharmacy refrigerator VISION 2T 500 TOUCH

for vaccinesfor hospitalslaboratory

Overview

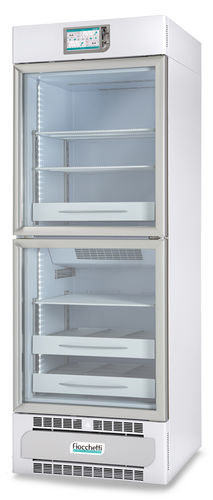

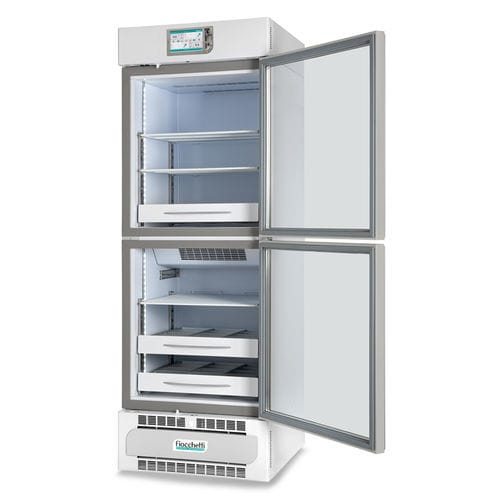

Combined refrigerator-freezer with two independent compartments and double cooling unit, specifically engineered for storage of medicines and vaccines at two controlled temperature ranges. Two tempered anti-fog, low-emissivity glass doors with anodized aluminium profiles, full-length ergonomic handles, magnetic gasket sealing and reversible opening side.

Key features

• Two compartments with independent double cooling unit for separate control of refrigerator (+2/+15°C) and freezer (-10/-20°C) zones.
• 7-inch FULL TOUCH SCREEN controller displaying multi-trace real-time graphs, current temperature, editable set-point and alarm limits; standard temperature and alarm recording.
• Data ports: SD card slot for history, USB port for download/update, SIM slot for optional GSM module. Integrated Web Server for LAN (RJ45) and MODBUS TCP/IP; dry contact for remote alarm.
• Alarms: acoustic and visual, silenceable, with automatic recording. Safety devices: anti-freeze and anti-overheating protections.
• Internal full-height LED lighting with adjustable brightness; mobility with 4 unidirectional rollers and 2 front feet.

Structure and refrigeration

• Inner dimensions (each compartment): 60 x 58.8 x 70 cm / 60 x 58.8 x 74 cm.
• Nominal capacity: 250 + 250 L (total 500 L).
• Net usable capacity: 249 + 230 L.
• Insulation: injected PUF high density 43 kg/m3, water-foam based, CFC-free; thickness 75 mm (back) / 60 mm (sides).
• Structure: monocoque white plastified steel interior/exterior with antibacterial coating; rounded inner corners; professional ventilated refrigeration and adaptive automatic defrost with condensate vaporization.

Controller and monitoring

• Microprocessor controller with 7-inch full touchscreen, 0.1°C resolution and ±0.3°C accuracy; multi-trace graphs and editable settings.
• Standard recording of temperature and alarms; SD/USB/SIM slots for history, downloads and connectivity.
• Connectivity options: LAN (RJ45), MODBUS TCP/IP, optional GSM and Wi‑Fi modules; dry contact for remote alarm signaling.
• Optional modules: electronic lock, DMLP TOUCH independent recorder, gateway IoT, local and cloud monitoring systems.

Technical data

• Refrigerant: R290.
• Energy consumption: 5.5 kWh/24h.
• Power absorption: 0.17 + 0.32 kW (current 1 + 2.3 A); inrush current 3 + 5 A.
• Noise level: <50 dBA. Heat rejection EN 12900: 229 W.
• Shelves/drawers: wire shelves 56 x 55 cm (max 3 + 3); drawers with dividers 15 x 50 x 7.5 cm; without dividers 49 x 50 x 7.5 cm.

Accessories (on request)

• Gateway IoT; FIOCCHETTI LAN SUPERVISOR local monitoring; power failure alarm kit; external terminal board for ECT-F TOUCH.
• Electronic lock; DMLP TOUCH digital monitor; GSM and Wi‑Fi modules; 4-20 mA converter; stainless steel wire racks; pull-out aluminium drawers; wheels kit; lockable narcotics drawer; PT100 probe; voltage stabilizer; custom packaging.

Applications

• Designed for pharmacies, hospitals and laboratories for controlled storage of medicines and vaccines requiring two temperature ranges, with integrated monitoring and alarm systems.
• Model: VISION 2T 500 TOUCH — Brand: Fiocchetti.
