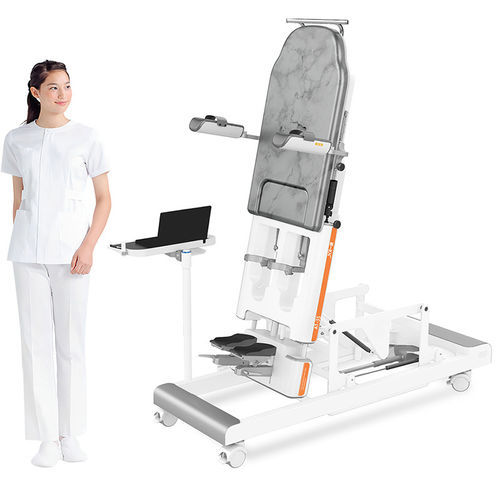

1 section tilt table A1-3on casterselectrictherapy
Add to favorites
Compare this product
Characteristics
- Number of sections
- 1 section
- Other characteristics
- therapy, electric, on casters
Description
Product overview
Key features
Intelligent automation
Rehabilitation technology & assessment
Ergonomic design
Training forms & interaction
Safety and clinical highlights
Technical specifications
- A1-3 is a robotic tilt-table system for early-stage and progressive lower-limb rehabilitation, designed to simulate physiological gait and support restoration of walking ability in patients with neurological impairments.
- Integrates progressive training modes, automated setup functions and immersive 3D virtual scenarios to combine therapy, assessment and motivation in one platform.
Key features
- Robotic tilt-table with orthostatic positioning (tilt 0–90°) and adjustable bed recline to vary loading and training intensity.
- Realistic gait simulation with hip joint motion up to 0–45° to reproduce walking kinematics.
- Progressive training pathway with three levels: passive scene interaction, unilateral induced training and alternating interactive training.
Intelligent automation
- Automatic leg-length measurement and automatic leg-length adjustment to fit patient morphology.
- One-button leg-length reset and one-button bed reset to reduce setup time and improve clinical workflow.
- Automated data recording, analysis and statistical summaries to track rehabilitation progress.
Rehabilitation technology & assessment
- Integrated ROM (range-of-motion) assessment for lower limbs with synchronized recording of training parameters.
- Combination of motor training with surface functional electrical stimulation (FES) and optional surface electromyography integration.
- Real-time visualized joint activity and progress indicators for objective monitoring.
Ergonomic design
- Bionic ankle-foot structure and lifting foot pedal to expand ankle-foot motion range.
- Movable armrests to stabilize upper-limb posture and reduce shoulder strain risk.
- Adjustable leg spacing and leg fixation to accommodate different body sizes; streamlined bed contouring for pressure reduction.
Training forms & interaction
- Multiple interaction modes: passive exercise, scenario simulation, left/right/one-leg training and alternating bilateral training.
- Intuitive interaction prompts and exercise timing control for therapist-guided or semi-automated sessions.
Safety and clinical highlights
- Back-leaning patented technology to assist hip extension and approximate physiological gait patterns while suppressing abnormal reflexes.
- Safety-focused armrest and fixation design to reduce risk of dislocation and improve patient stability.
- Personalized adjustable settings for leg and ankle spacing to support individualized therapy plans.
Technical specifications
- Model: A1-3
- Weight: 280 Kg
- Voltage: AC 220V 50Hz
- Tilt Angle (orthostatic): 0–90°
- Hip Joint Angle (gait motion): 0–45°
- Bed Reclining Angle: 0–15°
- Special Feature: Auto Leg Length Reset
- New Function: Auto Leg Length Adjust
- Warranty: 1 year
