Electric patient lift A17 Basic

rail-mountedceiling-mountedfor disabled people

Product Introduction

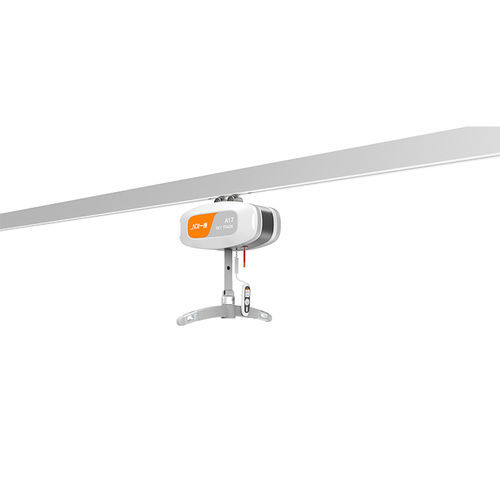

The Ceiling Hoist Walking Training System A17 Basic uses an electric hoist moving smoothly on a modular ceiling track to support patient transfer and gait, standing and balance training in hospitals, rehabilitation centers and long-term care facilities. The system facilitates safe transfers and everyday activities (toileting, bathing) while reducing lower-limb weight-bearing and stabilizing the center of gravity to improve participation in therapy. Tracks are configurable to site layouts with multiple combinations to meet clinical requirements.

Functional Features

• Electric lift with three adjustable speed settings (Low/Medium/High) for controlled ascent and descent and alignment with beds or chairs.
• Safe load capacity up to 300 kg to accommodate most patient profiles.
• Full-track charging ensures continuous readiness for clinical use.
• Ergonomic handheld controller for intuitive operation by clinical staff.

Short Description

• Model: A17 Basic
• Bearing capacity: 300 kg
• Training duration: 1–99 minutes
• Speed settings: Low, Medium, High

Application

• Hospitals and medical centers: safe transfers between beds, wheelchairs and treatment areas; integration in rehabilitation pathways.
• Nursing homes and care facilities: assisted transfers, safe toileting and bathing, improved caregiver ergonomics.
• Home care: safe transfers and mobility support for dependent patients to increase independence.
• Rehabilitation training: neurological rehab (stroke, brain injury, Parkinson's disease, spinal cord injury, cerebral palsy), early weight-bearing post-operative and sports-injury gait training, prosthetic/orthotic gait adaptation, fall-risk reduction for elderly and disabled patients.

Technical specifications

• Model: A17 Basic
• Type: Ceiling hoist walking training system with modular ceiling track
• Drive: Electric hoist with stable movement within track
• Load capacity (bearing): 300 kg (safe load)
• Training duration range: 1–99 minutes
• Speed settings: Low, Medium, High
• Charging: Full-track charging for continuous readiness
• Control: Handheld controller, simple and user-friendly operation
• Installation: Modular track configurable to site-specific layouts and clinical needs
• Primary applications: patient transfer, standing/walking/balance training, neurological rehabilitation, early weight-bearing rehab, prosthetic/orthotic gait training, elderly and disability care
